NUMALLIANCE

NUMALLIANCE

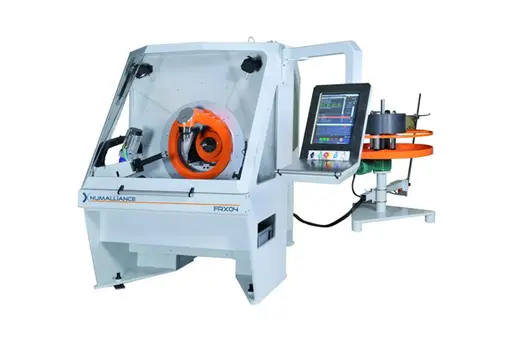

CNC Spring Forming Machine FRX

Model

Series

Wire and Flatstock Bending Machines

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Range : Sequential machines
Technical Presentation of the CNC spring forming machine FRX
The missing piece of the puzzle between wire bending and spring forming was found with the FRX

Main features
  • From .032″ to .236″
  • Wire Forms, Compression, Torsion and Extension spring
  • 3D bending from coil
  • Multifaceted tool also for complex parts (multi-axis interpolation)
  • Production of small to medium size quantities
  • Quick production changeover
  • Robotized bending arm with unlimited rotation around wire to avoid torsional stress
  • Optional – coiling detection system
 Man / Machine Interface
  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
  FRX04 FRX06
Wire capacity up to 1800N/mm² .032" to .182" .048" to .158"
Wire capacity up to 600N/mm² .032" to .156" .048" to .236"


Example of parts made with the CNC spring forming machine FRX

Download

Catalog-Numalliance-CNC Spring Forming Machine FRX
