NUMALLIANCE

CNC 2D Wire Bending Machine F2D

Model

Series

Wire and Flatstock Bending Machines

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Range : Sequential machines

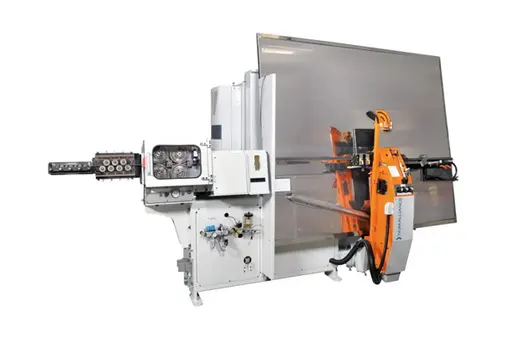

Technical Presentation of the 2D wire bending machine F2D
The solution for 2D wire bending and frame parts up to 800mm

Main features

From 0.12 to 0.47″
Wire
2D bending from coil
Production of welded frames up to 31 x 31″
Small to medium quantities
Table holds the wire in case of forming long parts
Welding parameters programed and saved with the part program
Optional Pick & Place for orderly ejection of the frame

Man / Machine Interface

Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion

Example of parts made with the 2D wire bending machine F2D

Download

Catalog-Numalliance-CNC 2D Wire Bending Machine F2D
