MAGBOT

MAGBOT

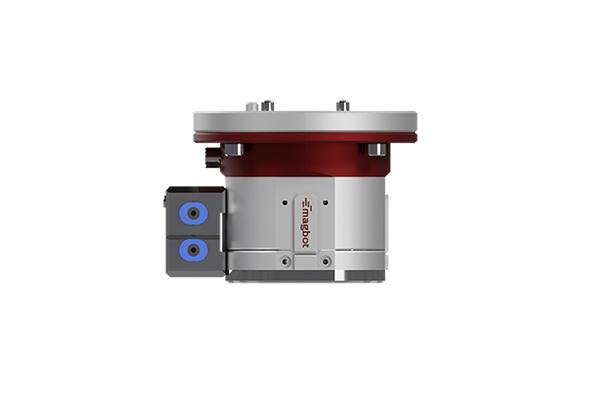

Cobot Tool Changer

Model

Series

Cobot Tool Changer


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Spec TCV2
Payload (Weight capability) 16kg [157N·m, 35.27lbs]
Positioning Repeatability ±0.05mm
Size
(Dimension)
Master TC
(Robot-side TC)
Ø80 × 62.5mm[3.15 in × 2.46 in]
Tool Plate
(Tool-side TC)
Ø78 × 15.2mm[3.07 in × 0.60 in]
Tool Changer
(When coupled)
Ø105 x 70.5mm[4.13 in x 2.78 in]
Weight
(Main product)
Master TC
(Robot-side TC)
1,146g [2.53 lbs]
Tool Plate
(Tool-side TC)
304g [0.67 lbs]
Tool Changer
(When coupled)
1450g [3.20 lbs]
Technology Switch Magnetic Tech
Temperature and Humidity -20˚C~80˚C [-4˚F~176˚F]
0~85%(no condensation)
IP Code (Ingress Protection) IP56
Electric Spec 24V / 2A
accessory Pogo Pin Module 1A X 8EA (Electric Module)
Pneumatic Module 6 Bar (M6 X 2EA)
Weight Capability (Holding Force) Under 16kg[35.27lbs]
Thickness of loading materials over 0.5T
Loading materials Ferromagnet
Grip / Release Duration 0.2 Sec
Electric Spec 24V, 2A

Download

Catalog-Magbot-Cobot Tool Changer
