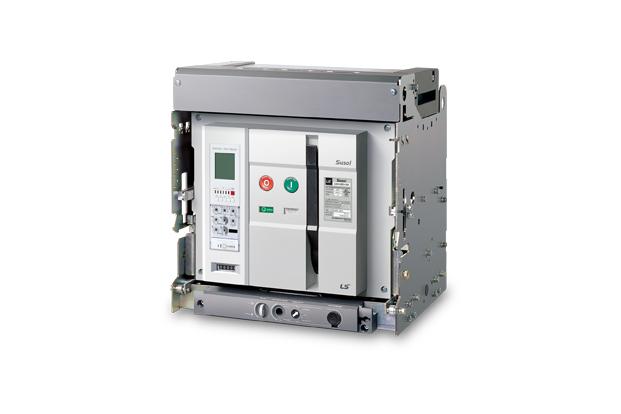

Susol UL ACB Susol UL Air Circuit Breaker

Premium Susol UL ACB meets your demands for high breaking capacity, full line-up to 6000A, and all-in optimized frame sizes for panel design. Susol UL VCB provides total solutions with an advanced trip relay for measurement, diagnosis, analysis, and communication, as well as protective functions for a complete protective coordination and electric power monitoring system.



Product Overview

Susol UL ACB series are UL listed and ANSI certified low-voltage power air circuit breaker UA series. Up to 6000A, Susol UL ACB provides a full line-up of 3 compact frame sizes, and enables users to design panels of optimal volume.



Benefits

ㆍModular design and compact size to satisfy the need for compact sized panels.

ㆍInterchangeable trip unit and rating plug : Easy to modify rated current without CT replacement.

ㆍUser convenience : Various connection types for main circuit terminals and easy installation of accessories.

ㆍIntelligent trip relay provided: Various advanced functions for protection, measurement, diagnosis, analysis, and communication.



Main specification

ㆍRatings :  up to 6000A

ㆍRated short circuit current :  up to 130kA/508Vac

ㆍN phase current conduction capacity : 100%

ㆍStandards : UL 1066, ANSI C37
