product Image

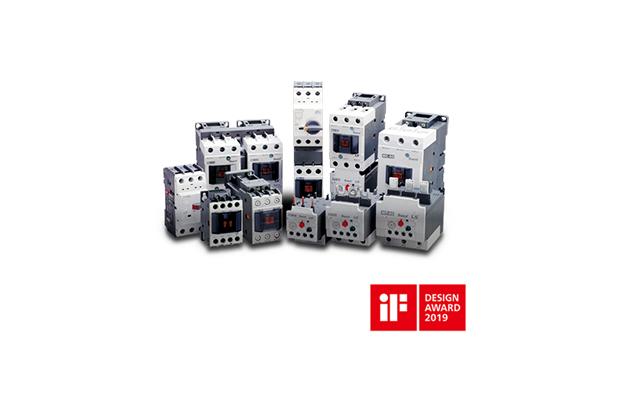

Susol MS (Susol Contactor & Overload Relay)
Model Name
-
Series
Low Voltage (Device)
Data
Catalog(Electric Product)-LS ELECTRIC-Low Voltage (Device)-Susol MS
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Product Type
Machine
Brand
-
SKU
132973
Product Name
Susol MS (Susol Contactor & Overload Relay)
Model Name
-
Size
-
Weight
-
Product Details

Susol MS Susol Contactor & Overload Relay

Super solution for controlling, switching, protecting, starting motors, Simplified 3 frame sizes (32/63/95AF from 9 to 95A), lug material in coordination with Susol circuit breakers and MMSs and screw terminal direct mounting with manual motor starters, environment protection by adopting recyclable



Features

For Power Distribution

ㆍThe highest breaking capacity

ㆍOptimum coordination technique (cascading & discrimination)

ㆍPowerful engineering tools



For Protection of Motor & its Control Device

ㆍOptimal overload protection

ㆍGuaranteed type-2 coordination between circuit breakers, contactors, and relays



For Controlling, Switching and Protecting Motors & Circuits

ㆍGreat performance and reliance

ㆍSuperior quality and long lifespan

ㆍIdeal solution where space is limited through perfect combination with MMSs



For Extensive Applications

ㆍWide range of optimized auxiliaries and accessories



Specification

Type AC-1 AC-3
A 220/240V 380/440V 500/550V 690V
KW A KW A KW A KW A
32AF MC-9 25 2.5 11 4 9 4 7 4 5
MC-12 25 3.5 13 5.5 12 7.5 12 7.5 9
MC-18 40 4.5 18 7.5 18 7.5 13 7.5 9
MC-25 40 5.5 25 11 25 15 22 15 18
MC-32 50 7.5 32 15 32 18.5 28 18.5 20
63AF MC-35 55 11 35 18.5 35 22 30 22 21
MC-40 60 11 40 18.5 40 22 32 22 23
MC-50 70 15 55 22 50 30 43 30 28
MC-63 75 15 63 25 63 30 45 30 30
95AF MC-65 100 18.5 65 30 65 33 60 33 35
MC-75 110 22 75 37 75 37 64 37 42
MC-85 135 25 85 45 85 45 75 45 45
MC-95 140 25 95 45 95 45 85 45 50
