product Image

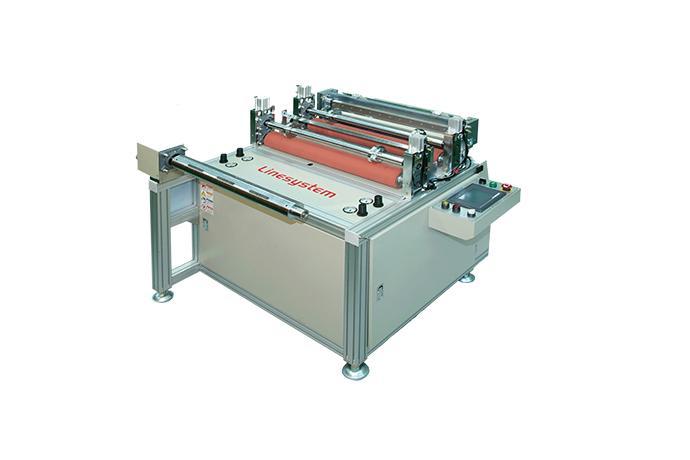

Roll Cutting Machine
Model Name
LSCU-60R
Series
Subsidiary Equipments
View All
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Product Type
Machine
Brand
-
SKU
6311
Product Name
Roll Cutting Machine
Model Name
LSCU-60R
Size
-
Weight
-
Product Details

Characteristic

• Servo motor allows control of precise cutting dimensions.
• Triple safety devices.
• Special-steel knife of excellent durability.
• Easy to hold and pull out the roll film with the air chuck.
• Easy numerical setting.

Specification



LSCU-60R

Max.Material Width

 700mm

Inside Diameter of Wind Plate

 Φ75, Φ150

Transfer Motor

 Servo Motor(450W)

Max.Cut Speed

 900 Sheet/H

Elec. Source

 220V × 1ph × 1.5KW

Dimension(W × D × H)

 1140 × 1160 × 1190mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
