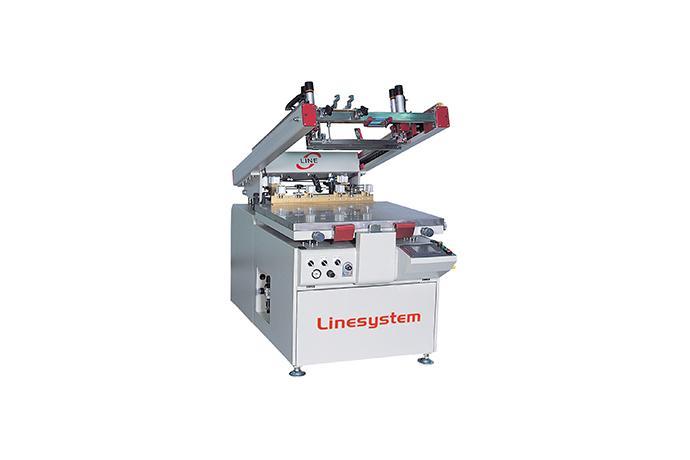

Semi Automatic Screen Printing Machine

Model Name

LSP Series

Series

Screen Printing Equipments

View AllView All Series

Data

Manufacturer information

LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

LINE SYSTEM

Product Type

Machine

Brand

SKU

2999

Product Name

Semi Automatic Screen Printing Machine

Model Name

LSP Series

Size

Weight

Product Details

Characteristic

• One-touch screen fixing method by using air pressure.
• Maintaining evenness of the working table by using aluminum alloy honeycom.
• Using a special device to prevent stirg of the screen.
• No trembling during for up and down movement of the side frame by selecting the inverter control.
• Using a servo motor.
• Reinforced durability for up and down movement of the squeegee by selecting a combined cylinder.
• Enhanced safety for operators by the quadruple safety devices.

Option

1. SWING SQUEEGEE
2. TABLE BLOWING DEVICE
3. TOUCH PANNEL
4. AUTO PRINTING TABLE UP&DOWN by MOTOR
5. LIGHT TABLE

Specification

	LSP-6050S	LSP-8060S	LSP-12080S
Max.Printing Size	600× 500mm	800 × 600mm	1200× 800mm
Printing Table Size	750 × 710mm	900 × 800mm	1320 × 1000mm
Max.Frame Size(outer)	900 × 900mm	1100 × 1000mm	1500 × 1300mm
Min.Frame Size(outer)	500 × 500mm	600 × 600mm	800 × 800mm
Screen Frame Fixing	Cylinder Clamp	Cylinder Clamp	Cylinder Clamp
Printing Speed	Max.1100cycle/h	Max.1000cycle/h	Max.900cycle/h
Printing Pressure	0 ~ 95kgf	0 ~ 95kgf	0 ~ 95kgf
Working Table Height	900±50mm	900±50mm	900±50mm
Printing Material Thickness	0 ~ 50mm	0 ~ 50mm	0 ~ 50mm
Peel Off Adjustment	0 ~ 25mm	0 ~ 25mm	0 ~ 25mm
Squeegee Speed	100 ~ 800mm	100 ~ 800mm	100 ~ 800mm
Squeegee Angle	60˚ ~ 90˚	60˚ ~ 90˚	60˚ ~ 90˚
Squeegee Bias	±6˚	±6˚	±6˚
Air Source	6kgf/㎠	6kgf/㎠	6kgf/㎠
Elec.Source	220V(380) × 3ph × 2kW	220V(380) × 3ph × 2kW	220V(380) × 3ph × 2kW
Weight	Approx.570kg	Approx..610kg	Approx..710kg
Dimension(W × D × H)	800 × 1650 × 1380mm	990 × 1700 × 1380mm	1350 × 1900 × 1380mm
