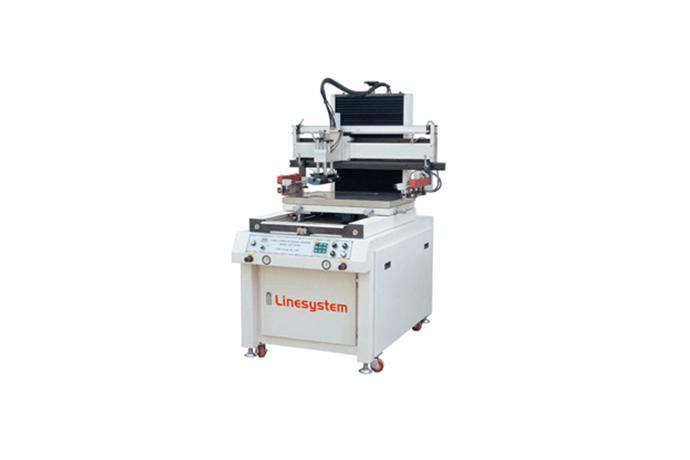

Two Post Semi Automatic Screen Printing Machine

Model Name

LSP-5040TH

Series

Screen Printing Equipments

View AllView All Series

Data

Manufacturer information

LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

LINE SYSTEM

Product Type

Machine

Brand

SKU

3002

Product Name

Two Post Semi Automatic Screen Printing Machine

Model Name

LSP-5040TH

Size

Weight

Product Details

Characteristic

• Economical semi-automatic screen printing M/C at the lowest price.
• Maintaining evenness of the working table by using aluminum alloyhoneycom.
• One-touch screen fixing method by using air pressure.
• Horizontal, up and down movement of the screen.

Option

1. TOUCH PANEL

Specification

	LSP-5040TH
Max.Printing Size	500 × 400mm
Printing Speed	600cycle/hour
Printing Pressure	0 ~ 45kgf
Printing Table Size	650 × 500mm
Table Driving	Cylinder
Table Position Accuracy	±10㎛
Max.Frame Size(outer)	800 × 900mm
Screen Frame Fixing	Cylinder Clamp
Material Fixing	Ring Blower
Squeegee Driving	Cylinder
Squeegee Angle	60° ~ 90°
Air Source	6kgf/㎠
Elec.Source	220V × 1ph × 500W
Weight	Approx.500kg
Dimension(W × D × H)	1050 × 1400 × 1790mm
