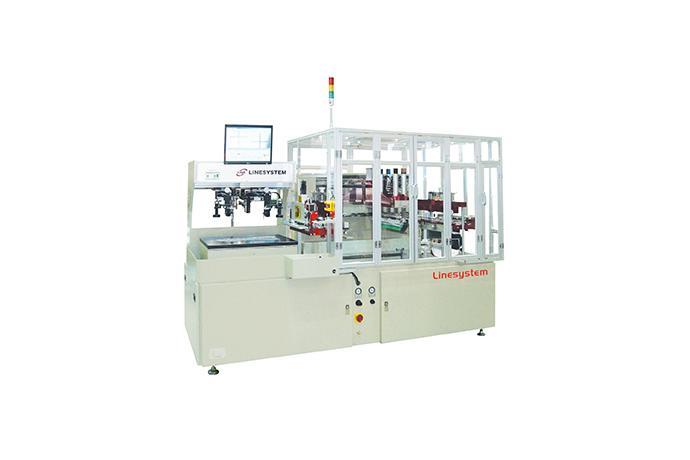

Fully Automatic Screen Printing Machine for Solar Cell
Model
Series
Screen Printing Equipments
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
Characteristic
• Fully automatic screen printing M/C for Solar Cell(Silicon Wafer).
• Simultaneous processes of printing, alignment and input, discharge improve productivity.
• Printing speed in creased by 3head printing.
• AC servo motor allows maintenance of a constant squeegee speed.
• High precision fixed goods by using vision align system.
• By using squeegee tension sensor to allowed maintenance tension.
• High-strength and low-vibration structure of body frame.
• Set the data for printing speed, printing stroke and etc.using touch panel.
• Standardization working by data management.
Specification
|
|
LSP-1616SA3H |
|
Printing Size |
156 × 156mm |
|
Screen Frame Size(outer) |
380 X 380mm |
|
Max.Printing Speed |
3000pcs / 1hour |
|
Printing Material Transfer |
Stepping Motor |
|
Squeegee Driving |
Servo Motor |
|
Printing Material Fixing Type |
Vacuum Hole |
|
CCD Camera |
3 point |
|
Vision Alignment Accuracy |
±5㎛ |
|
CCD Camera Induce Acreage(FOV) |
6 x 8mm |
|
Dimension(W × D × H) |
2700 × 1500 × 1600mm |
* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
