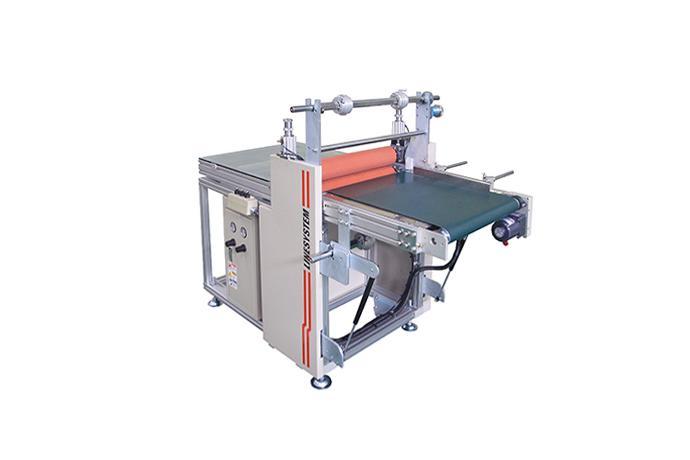

Laminating Machine
Model Name
LSLA-60D
Series
Subsidiary Equipments
View All
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Product Type
Machine
Brand
-
SKU
6309
Product Name
Laminating Machine
Model Name
LSLA-60D
Size
-
Weight
-
Product Details

Characteristic

• Able to double side laminating.
• Easy to change the film.
• Easy to fix the film tension.
• Easy to change the laminating width by using a fixing guide.
• Easy to change the roll tension by using air pressure.
• No air bubble comes to light by using a special roll.

Specification



LSLA-60D

Max.Laminating Width

 600mm

Max.Speed

 600 Sheet/h

Conveyor Height

 950±30mm

Roller Standard

 Φ120 ~ Φ140

Air Source

 4 ~ 6kgf/㎠

Elec. Source

 200V × 3p × 550W

Dimension(W × D × H)

 535 × 945 × 1000mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
