LINE SYSTEM

LINE SYSTEM

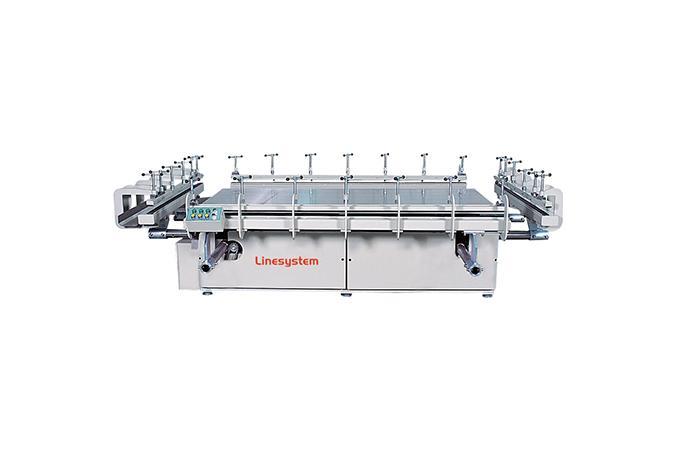

Stretching Machine for Stainless Mesh

Model

Series

Screen Frame Equipments


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Characteristic

• High-tension stretching suitable for the stainless mesh.
• Special rubber clamp enables to maintain high clamping capability.
• Fixing screw with special heat treatment.
• The heat-treated fixing screw improves the durability.

Option

  1. TOUCH PANEL

Specification



LSC-1010S

LSC-1020S

LSC-1515S

Working Table Size

800 × 1000mm

800 × 1500mm

800 × 2000mm

Max.Tension Lenght

X = 500, Y = 500mm

X = 700, Y =500mm

X = 700, Y = 700mm

Max.Frame Size(outer)

1000 × 1000mm

1500 × 1500mm

1000 × 2000mm

Table Up·Down

100mm

100mm

100mm

Elec.Source

220V(380) × 3p × 2kW

220V(380) × 3p × 2.3kW

220V(380) × 3p × 2.3kW

Weight

Approx.650kg

Approx.800kg

Approx.1000kg

Dimension(W × D × H)

1900 × 1600 × 1000mm

2300 × 1800 × 1550mm

2700 × 1800 × 1550mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
