product Image

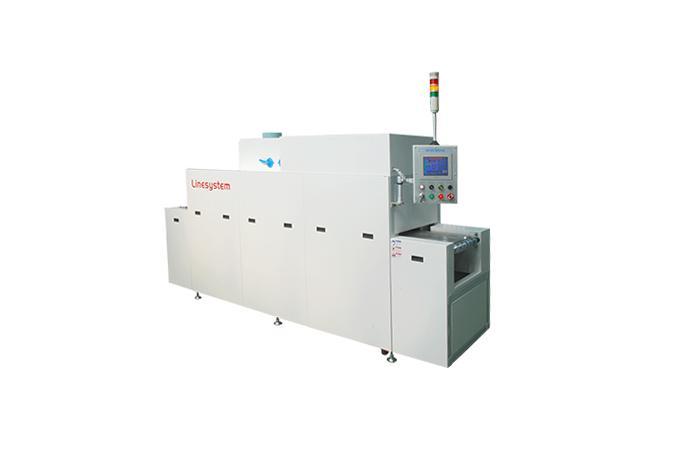

NIR Dryer for Solar Cell
Model Name
LSD-NIR Series
Series
Drying Equipments
View All
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Product Type
Machine
Brand
-
SKU
6291
Product Name
NIR Dryer for Solar Cell
Model Name
LSD-NIR Series
Size
-
Weight
-
Product Details

Characteristic

• Using high efficient heaters to realize the best drying
• Circulation of hot air structure, maintains constant temperature.
• Perfect airproof, prevent of hot loss.
• Designed double safety circuit diargram.
• Equipped with the overheating alarming device.
• Double hot drying of silicon wafer.

Specification



LSD-40NIR

Over All Length

Approx.3.5m

Max.Temp.

220°C

Heating Source

NIR Heater & FIN Heater

Belt Width

400mm

Belt Speed

40 ~ 80mm/sec

Temp.Control

PID Control by SCR

Heating Room

2.36m × 1room

Inner quality of heated room

Stainless Steel

In & Out conveyor

440mm / 440mm

Dimension

3510 × 890 × 1769mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
