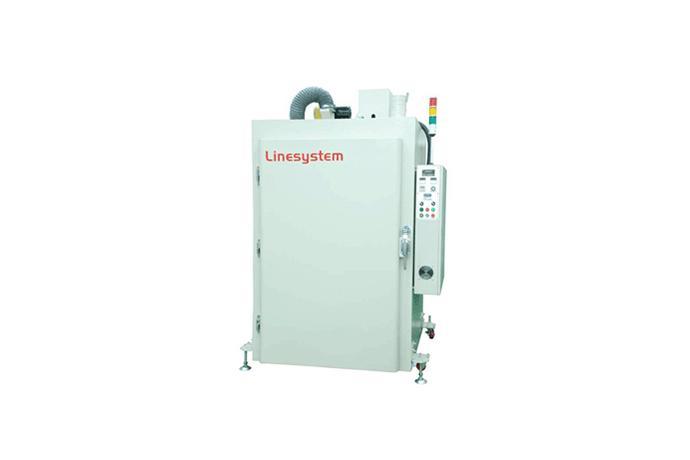

product Image
Box Oven
Model Name
LSD-1R
Series
Drying Equipments
View All
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Product Type
Machine
Brand
-
SKU
6290
Product Name
Box Oven
Model Name
LSD-1R, LSD-2R
Size
-
Weight
-
Product Details

Characteristic

• Stainless material prevents internal corrosion and allows long durability.
• PID temperature control allows constant temperature distribution.
• Side-to-side circulation of hot airmaintains constant temperature distribution in the vertical direction.
• Has a filter mounted at the air inlet.
• As there is no sill under the door, no inclined plate for fransfer of the rack is required.
• Temperature display function(high, medium and low).

Option

  1. RECORD

Specification



LSD-1R

LSD-2R

Temperature

180°C

180°C

Temp.Control

P.I.D Control by SCR

P.I.D Control by SCR/div>

Circulation Motor

1Hp X 1EA

1Hp X 1EA

Elec. Source

220(380)V X 3ph X 18 ~ 20W

220(380)V X 3ph X 18 ~ 20W

Weight

Approx.700kg

Approx.1200kg

Internal Size(W × D × H)

900 X 1100 X 1600mm

900 X 1100 X 1600mm

External Size(W × D × H)

1550 X 1400 X 2350mm

1550 X 1400 X 2350mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
