product Image

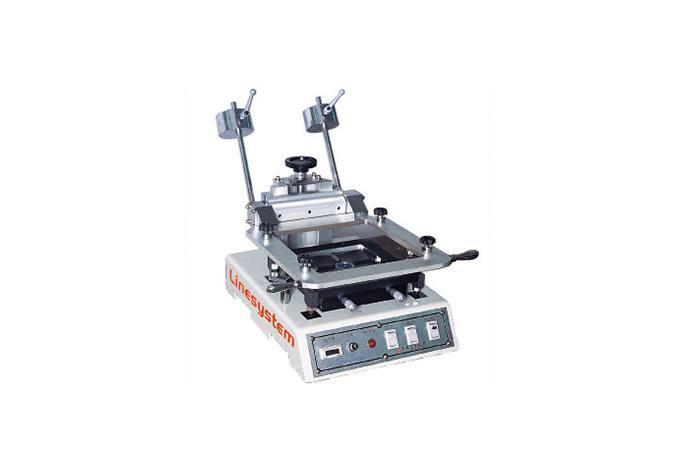

Precision Manual Screen Printing Machine
Model Name
LSP-1515M
Series
Screen Printing Equipments
View All
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Product Type
Machine
Brand
-
SKU
3010
Product Name
Precision Manual Screen Printing Machine
Model Name
LSP-1515M
Size
-
Weight
-
Product Details

Characteristic

· Manual printing machine for precision printing.
· Micro handle allows precision alignment of the point.
· Suitable for precision printing on those such as ceramic
components.
· Compact structure.

Option

1. GUIDE RAIL

Specification



 LSP-1515M

Printing Table Size

150 × 150mm

Max.Frame Size(outer)

250 × 250mm

Printing Table Size

320 × 320mm

Elec.Source

220V × 1ph × 400W

Weight

Approx.45kg

Dimension(W × D × H)

365 × 530 × 320mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
