product Image

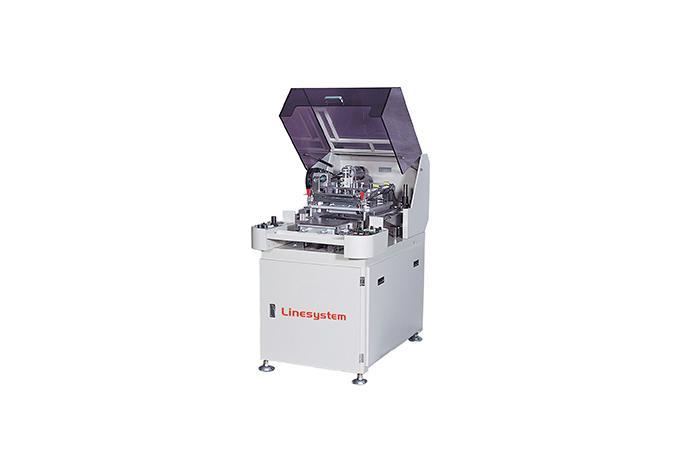

High Precision Semi Automatic Screen Printing Machine
Model Name
LSP-1515TS
Series
Screen Printing Equipments
View All
Data
-
Manufacturer information
provider logo
LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Problem with product info?
Update request
Manufacturer
LINE SYSTEM
Product Type
Machine
Brand
-
SKU
3000
Product Name
High Precision Semi Automatic Screen Printing Machine
Model Name
LSP-1515TS
Size
-
Weight
-
Product Details

Characteristic

• One-touch screen fixing method by using air pressure.
• Ball Screw helps maintain a constant speed of the squeegee.
• Micro handle enables prompt and precise alignment.
• Precisely machined alloy table.

Option

1. CCD CAMERA
2. PRINTING TABLE SLIDING to RIGHT or LEFT
3. CAN USE ATTACHMENTS
4. TOUCH PANEL

Specification



LSP-1515TS

Max.Printing Size

150 × 1500mm

Printing Table Size

230 × 230mm

Printing Speed

400cycle/hour

Printing Pressure

0 ~ 50kgf

Table Flatness

±15㎛

Table Driving

A.C Motor

Table Position Accuracy

In/Out ±10㎛

Material Fixing

Suction by Ring Blower

Max.Frame Size(outer)

320 × 320mm

Frame Fixing

Cylinder Clamp

Squeegee Driving

A.C Motor & Ball Screw

Squeegee Angle

60° ~ 90°

Air Source

6kgf/㎠

Elec.Source

220V × 1ph × 1kW

Weight

Approx.400kg

Dimension(W × D × H)

640 × 1100 × 1330mm

* Special specification is made to order.
* Appearance and specifications in this homepage are subject to change without notice.
