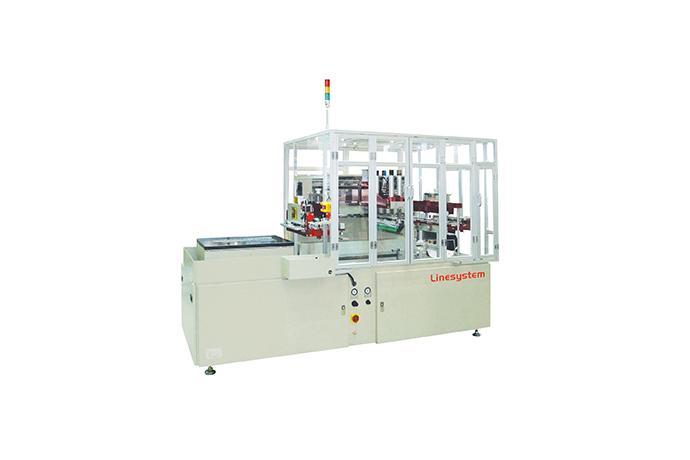

High Precision Semi Automatic Screen Printing Machine

Model Name

LSP-L Series

Series

Screen Printing Equipments

View AllView All Series

Data

Manufacturer information

LINE SYSTEM

Screen printing machine manufacturer, Printing facility, Dryer, Plate making facility, Touch panel and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

LINE SYSTEM

Product Type

Machine

Brand

SKU

2992

Product Name

High Precision Semi Automatic Screen Printing Machine

Model Name

LSP-L Series

Size

Weight

Product Details

Characteristic

• Fixed type of the screen has the advantage in the high-precision printing.
• One-touch screen fixing method by using air pressure.
• Maintaining evenness of the working table by using aluminum alloy honeycom.
• Driving the printing table using the servo motor enables the high precision position accuracy.
• Servo motor allows maintenance of a constant squeegee speed.

Option

1. SWING SQUEEGEE
2. CCD CAMERA & MONITOR
3. TOUCH PANEL
4. CLEANING & ANTI STATIC DEVICE

Specification

	LSP-5040L	LSP-6050L
Max.Printing Size	500 × 400mm	600 × 500mm
Max.Frame Size(outer)	900 × 900mm	1000 × 900mm
Min.Frame Size(outer)	750 × 550mm	850 × 600mm
Screen Frame Fixing	Cylinder Clamp	Cylinder Clamp
Printing Material Fixing Type	Vacuum Generator	Vacuum Generator
Table Driving Type	Ring Blower or Vacuum Generator	Ring Blower or Vacuum Generator
Table Position Accuracy	±10㎛	±10㎛
Printing Table Size	660 × 660mm	750 × 600mm
Printing Speed	400pcs/hour(9sec/cycle)	300pcs/hour(10sec/cycle)
Printing Pressure	0 ~ 60kgf	0 ~ 60kgf
Squeegee Driving	Servo Motor	Servo Motor
Squeegee Angle	60˚ ~ 90˚	60˚ ~ 90˚
Air Source	6kgf/㎠	6kgf/㎠
Elec.Source	220V(380) × 1ph × 1.5kW	220V(380) × 1ph × 1.5kW
Weight	Approx.750kg	Approx.900kg
Dimension(W × D × H)	2045 × 1170 × 1450mm	2420 × 1170 × 1450mm
