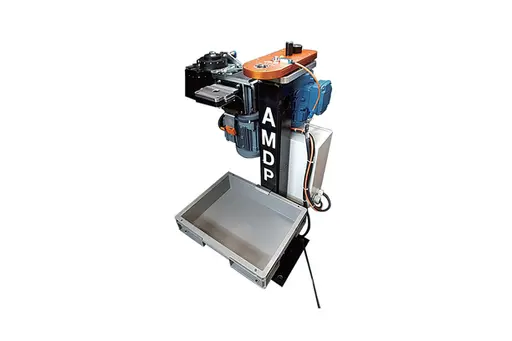

1. It can be supplied in horizontal or vertical position
2. Applicable to both servo and pneumatic gun
3. Avoid the operator to enter in the cell to change the cap tip manually
4. Very easy trajectory programming / One axe only
5. Electrode change in less than 18 seconds
6. Allow to install the combination type of dresser and changer in limited space
7. Using with or without a equalizer according to welding guns

Support your processes and your performance, with cutters.

Competitor’s Solution

The chips are pushed through the empty part of the cutter.

Even using a blowing unit to push away the chip, many customers complain about jamming the cutter.

In this case, the tip dressing can not be made furthermore due to gap between tip surface and cutter blade.

Consequently, customers needs to stop the welding line and clean the cutter. → Losing quality of the welding(high risk quality: to rework the welding point) → Losing welding line capacity(high risk cost: stop the line)

AMDP Solution

AMDP’s patented cutter is a technology ejecting the chips automatically.

Without air blower, the new chip is pushing the previous chips.

AMDP’s customers are all satisfied to never jam the process.

Best quality guarantee (No chip blocking the cutting edge of blade) → No loss of money (No line stop) → Best running costs & capacity guarantee.

SWING ARM

Rotary Positioning System for Securing Robot Operation Space by Separated Installation of Dresser and Changer
