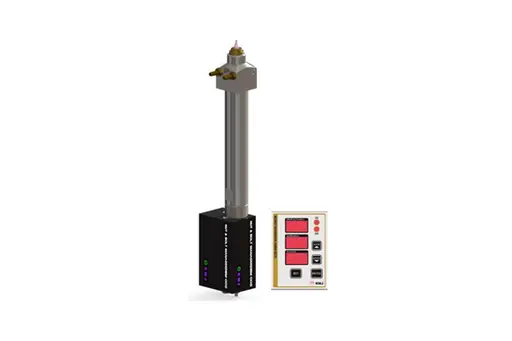

It is a device which detect the faults in nut and bolt welding such as nut mis-aligned, bad nut projection, incorrect nut, reverse feed, fallen nut, no workpiece, loose tip, workpiece mis-aligned, nut missing, no welding, nut overlapped, bolt length incorrect, etc before welding, and check if welding penetration is good or not after welding.
| 주요제원 | MAIN PRODUCTS | UNIT | 누락검사 MISSING INSPECTION | ||
| KBM-001 (NUT) | NBM-002 () | ||||
| 입력전압 | Input Voltage | VOLT | AC 110/220 | AC 110/220 | AC 110/220 |
| 제어전압 | Output Voltage | VOLT | DC 24V | DC 24V | DC 24V |
| 검출방식 | Detection method | – | Displacement Senser | Displacement Senser | Displacement Senser |
| 입력/출력계열 | Input/Output series | – | 15(1,2,4,8) | 15(1,2,4,8) | 15(1,2,4,8) |
| 판정출력 | Judgement output | – | – | – | NG/OK/RESET |
| Setpoint Tolerance | mm | 0.1 | 0.1 | 0.1 | – |
| 구동 | Drive | – | SCALE CYLINDER | SCALE CYLINDER | SCALE CYLINDER |
| 구성품1 | Standard Components 1 | EA | SCALE CYLINDER & CABLE | SCALE CYLINDER & CABLE | SCALE CYLINDER & CABLE |
| 구성품2 | Standard Components 2 | EA | INDICATOR & POWER SUPPLY | INDICATOR & POWER SUPPLY | INDICATOR & POWER SUPPLY |
