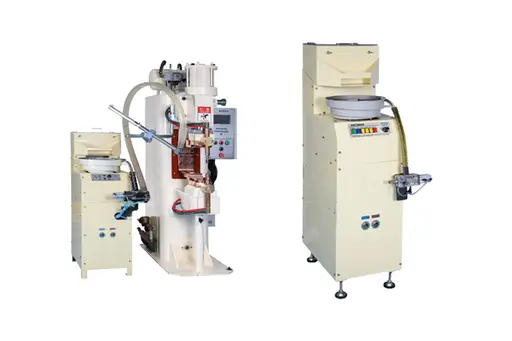

Description
1. Various options suitable for any working condition according to working site and workpiece
2. Operator-friendly control panel for easy operation and good visibility
3. Rigid support clamping the feeding head assembly for stable feeding work without any vibration
4. Hopper and bowl cover to prevent welding spatters and foreign objects from contaminating
5. Ball spline applied to bolt feeding head guide for a sturdier structure and durability
Option
1. Automatic feeding HOPPER
2. I/O signal interfacing with external devices for automation
3. Function detecting of missing nut and bolt
4. Function monitoring air pressure
5. XY-stage for fast and precise adjustment of feeding head
| 주요제원 | MAIN PRODUCTS | UNIT | NUT FEEDER | BOLT FEEDER | ||
| KR-NF-01 | KR-NF-02 | KR-BF-01 | KR-BF-02 | |||
| Hopper 피딩제어 | Hopper Feeding Control | Type | Manual | Counter | Manual | Counter |
| Hopper 커버 | Hopper Cover | Y/N | N | Y | N | Y |
| Bowl 피딩제어 | Bowl Feeding Control | Sensor | Short-curcuited | <--------- | Proximity | <--------- |
| Bowl 커버 | Bowl Cover | Y/N | N | Y(Door) | N | Y(Door) |
| 공급 이상 경보 | Feeding Error Alarm | – | N | LED Lamp | N | LED LAMP |
| Shoot 설정 시간 | Shoot Setting Time | Sec | 2 | Timer Setting | 2 | Timer Setting |
| Shoot 압력 | Shoot Pressure | – | ||||
| Head Type | Head Type | - | Air Nozzle | <--------- | Clamping Cup | <--------- |
| Rod Guide 방식 | Rod Guide Type | - | Ram Guide | <--------- | Ball Spline | <--------- |
| 피딩 행정 | Feeding Stroke | mm | 200 | <--------- | <--------- | <--------- |
| Head 고정위치 | Head fixing Location | – | At W/M | <--------- | <--------- | <--------- |
| Head 미세조정 | Head Fine Adjustment | mm | N | X/Y-axle 5 | N | X/Y-axle 5 |
| 입력 전압 | Input voltage | V | 110 | <--------- | <--------- | <--------- |
| 누락 검출 | No Feeding Detection | – | N | 2 Sensor | N | 2 Sensor |
| 전극 드레싱 S/W | Tip Dressing S/W | – | N | Both Hand P/B | N | Both Hand P/B |
| 수량 카운터 | Feeding Counter | – | N | 4 Digits | N | 4 Digits |
| 작업 완료 출력 | Work Completion Output | – | N | DC24,200mA | N | DC24,200mA |
| 공급 이상 출력 | Feeding Error Output | – | N | DC24,200mA | N | DC24,200mA |
| 공압 이상 출력 | Air Pressure Error Output | – | N | DC24,200mA | N | DC24,200mA |
| 외부 입력 1 | External Input 1 | – | N | Escapement | N | Escapement |
| 외부 입력 2 | External Input 2 | – | N | Alarm Reset | N | Alarm Reset |
| 외형 치수 | Dimension(W x D x H) | mm | 300×500×1,200 | <--------- | <--------- | <--------- |
