This product is manufactured by
KMJ

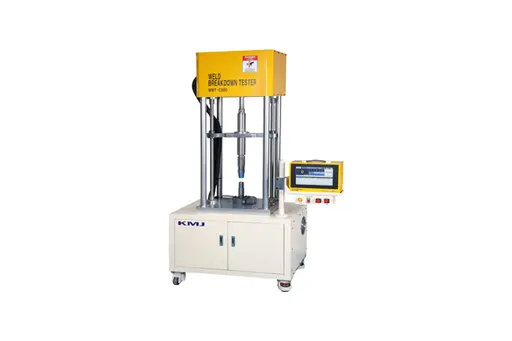

Weld Breakdown Tester
Model Name
WBT-300
Manufacturer information
KMJ
Resistance welding machine, Cable for welding, Special alloy, Electric control device, Arc parts, Welding apparatus
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
KMJ
Product Type
Machine
Brand
-
SKU
142186
Product Name
Weld Breakdown Tester
Model Name
WBT-300, WBT-500
Size
-
Weight
-
Product Details
- Quick and exact nugget destruction test
- Digital processing and LED display
- Cost saving by semi-destructive test function
- Compact and light weight
- Realized high accurate destruction test by stable hydraulic pressure
- Rigid C-frame suitable both small and large workpiece
| 모델 | Model | Unit | WBT-300 | WBT-500 |
| 최대용량 | Max. Testing Load | Kgf | 3,000 | 5,000 |
| 적정용량 | Ideal Testing Load | Kgf | 2,500 | 4,500 |
| 실린더 스트로크 | Working Stroke | mm | 100 | 100/150 |
| 전원입력 | Input Power | - | AC 200V, 50/60Hz | AC 200V, 50/60Hz |
| 사이즈 | Dimension(WxDxH) | mm | 270x512x602 | 330x532x698 |
| 중량 | Weight | Kgf | 95 | 140 |
- 7inch, 10.2inch touch screen optimized fro the job site
- Indicate current measured bad cell value in real time
- Tester can be set by setting destructive inspection mode and nondestructive inspection mode
- The tensile strength of each product can be set differently
- You can see the product-specific tester data on the screen over time, save it to USB and check it on your PC
