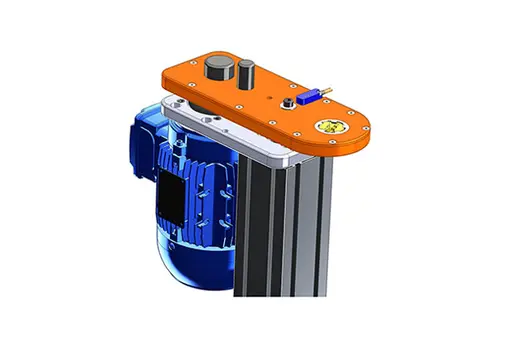

1. High-speed auto tip dresser speeding up to 780 RPM of cutter blade

2. Powerful 3-phase electric motor

3. Auto discharging chips by cutter rotating speed without air blower

4. Stable welding quality by fine dressing of tip surface

5. Improving productivity to shorten dressing time

6. Cutter rotation sensor(optional : binary/counting signal)

TIP CUTTER ASSEMBLY

1. High
2. Very compact dressing cutter, which makes it possible to dress all types of guns
3. Recommended pressure of the gun on the cutter : between 80 and 150daN depending on the type of gun and electrodes advantages

SYMMETRICAL BLADE

1. Perfect guidance of the tips
2. No vibration during dressing
3. Diameter of the lens guaranteed
4. Circular Told ±0.1mm
5. Chip thickness controlled by AMDP design

SYMMETRICAL BLADE

• No hold through cutter
• No jamming
• Automatic ejection of the chip, without air blower

INTERCHANGEABLE BLADE

1. CUTTER -> LIFT-TIME CUTTER 60,000 DRESSING CYCLES
2. BLADE -> LIFT-TIME BLADE 15,000 DRESSING CYCLE
