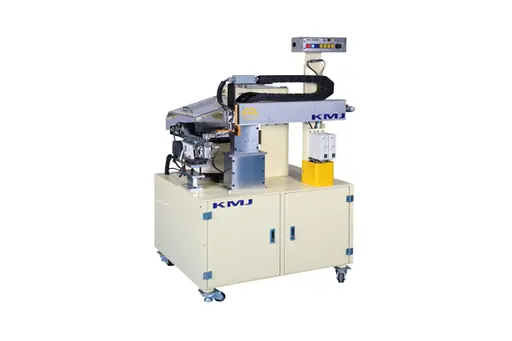

Description
1. I/O Signal interfacing with external equipment for automation
2. Detection function for feeding error
3. Various options being able to adapt any working condition by work site and workpiece
4. Color lamp switches for easy operation and good visibility
5. Monitoring function of air pressure
6. Applied LM guide to head guide for high durability and no vibration
7. Bowl cover to prevent welding spatters and foreign objects from contaminating
8. Servo motor-operated head suitable for various working conditions
| 주요제원 | MAIN PRODUCTS | UNIT | SPECIAL FEEDER | |
| KR-AF-01 | KR-AF-02 | |||
| Hopper 피딩제어 | Hopper Feeding Control | Type | Manual | Counter |
| Hopper 커버 | Hopper Cover | Y/N | N | Y |
| Bowl 피더 제어 | Bowl Feeder Control | Sensor | Proximity | <---------- |
| 직선 피더 제어 | Linear Feeder Control | Sensor | Proximity | <---------- |
| 이상 표시 | Error Lamp | - | Red LED Lamp | <---------- |
| SPOT 기동 지연설정 | Delay Time Setting of Weld Start | - | Timer | <---------- |
| Work Clamping 방법 | Work Clamping Method | - | Air, Chuck, etc | <---------- |
| Head 행정 | Feeding Stroke | mm | 400 | <---------- |
| Head 이송 동력 | Head Drive Method | - | Air Cylinder | AC Servo Motor |
| Head 이송 Guide | Head Transfer Guide | - | LM Guide | <---------- |
| Head 고정위치 | Head Fixing Location | - | Main Frame | <---------- |
| Head 상하 조절 | Head Up/Down Adjustment | mm | 100 | <---------- |
| 입력 전압 | Input Voltage | V | 110 / 220 | <---------- |
| 누락 검출 | No Feeding Detection | - | Short-curcuited | <---------- |
| 불량 카운터 | NG Counter | Y/N | N | Y |
| 전극 드레싱 S/W | Tip Dressing S/W | Y/N | N | Y |
| 작업 완료 출력 | Work Completion Output | Y/N | N | Y |
| 공급 이상 출력 | Feeding Error Output | Y/N | Y | Y |
| 공압 이상 출력 | Air Pressure Error Output | Y/N | N | Y |
| 외부 입력 1 | External input 1 | - | Escapement | <---------- |
| 외부 입력 2 | External input 2 | - | Alarm Reset | <---------- |
| 외형 치수 | Dimension(W x D x H) | mm | 750×650×1,450 | <---------- |
