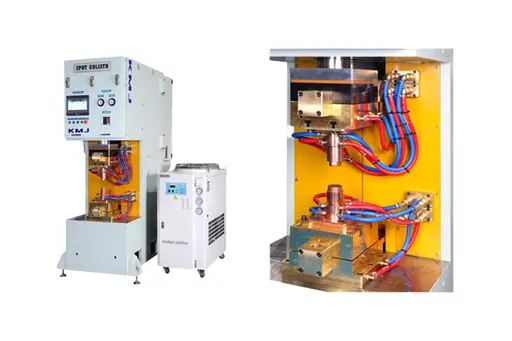

product Image

AC&DC Weld controller & Transfer

Model Name

-

Series

Welding Equipment

View AllView All Series

Data

-

Manufacturer information

Resistance welding machine, Cable for welding, Special alloy, Electric control device, Arc parts, Welding apparatus

Inquiry

Problem with product info?

Update request

Manufacturer

KMJ

Product Type

Machine

Brand

-

SKU

142151

Product Name

AC&DC Weld controller & Transfer

Model Name

-

Size

-

Weight

-

Product Details

모델	MODEL	UNIT	GOLIATH
정격용량	Rated Capacity	Kva	600
입력전압	Primary Input Power Voltage	Volt	220/380/440
최대입력	Primary Input Power	Kva	1,100
입력전원상수	Primary Constant Power	Phase	3
허용사용율	Duty Cycle	%	7.6
최대출력전류	Max Output Current	A	90,000
출력주파수	Output Frequency	Hz	50/60
최대가압력	Max Pressure force	kgf/cm²	3,300
실린더행정	Max Cylinder Stroke	mm	100
작업깊이	Working Pocket	mm	500
전극홀더규격	Platen Size	mm	250×250
작업높이	Working Height	mm	900
인입냉각수량	Water Flow Rate	liter/min	30
용접전류설정	Welding Current Control	touch screen에 의한 직독식제어
용접시간설정	Welding Time Control	touch screen에 의한 직독식제어
용접계열수	Number of Welding Schedules	EA	64
슬로프용접	Slope Welding		유
생산량카운터	Production Counters		유
공기압이상경보	Air Pressure Alarm		유
냉각수이상경보	Water Flow Alarm		유
Welder Weight		kg	4,200
