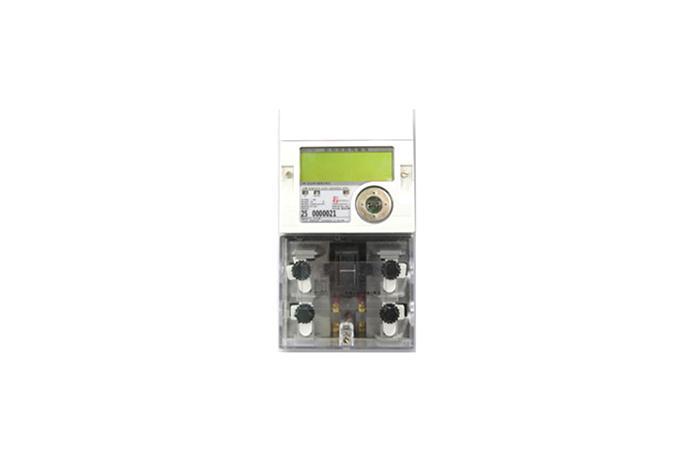

Single Phase kWh Meter For over 200A Consumer

Rated Voltage(V)Vn

220V or Specific Vn

Operating Voltage(V)

50%~180% Vn

Rated Current(A)In

200 (40) A

0.5 / 1.0 Class

Direct Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

1,000 pulse/kWh

CT Hole size(mm)

120 X 230 X 95

※ This meter shall be designed according to IEC specification including DLMS.
※ This meters can be change without power failure using Clip CT.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 6 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Single Phase kWh Meter with Multi-function

Rated Voltage(V)Vn

220V or Specific Vn

Operating Voltage(V)

70%~180% Vn/li>

Rated Current(A)In

5 (1) A

1.0 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

20,000 pulse/kWh

Terminal Hole size(mm

120 X 170 X 75

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 3 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Single Phase kWh Meter with Multi-function

Rated Voltage(V)Vn

220V or Specific Vn

Operating Voltage(V)

70%~180% Vn

Rated Current(A)In

40 (10) A

1.0 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

2000 pulse/kWh

Terminal Hole size(mm)

120 X 170 X 75

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 3 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Single Phase kWh Meter with Multi-function

Rated Voltage(V)Vn

220V or Specific Vn

Operating Voltage(V)

70%~180% Vn

Rated Current(A)In

120 (20) A

1.0 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

1000 pulse/kWh

Terminal Hole size(mm)

120 X 170 X 75

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 3 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Three Phases kWh Meter with Multi- function

Rated Voltage(V)Vn

220 / 380V or Specific Vn

Operating Voltage(V)

70%~180% Vn

Rated Current(A)In

5 (1) A

1.0 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

10000 pulse/kWh

Terminal Hole size(mm)

170 X 225 X 85

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 3 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Three Phases kWh Meter with Multi- function

Rated Voltage(V)Vn

220 / 380V or Specific Vn

Operating Voltage(V)

70%~180% Vn

Rated Current(A)In

40 (10) A

1.0 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

1000 pulse/kWh

Terminal Hole size(mm)

170 X 225 X 80

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 3 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Three Phases kWh Meter with Multi- function

Rated Voltage(V)Vn

220 / 380V or Specific Vn

Operating Voltage(V)

70%~180% Vn

Rated Current(A)In

120 (20) A

1.0 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

500 pulse/kWh

Terminal Hole size(mm)

190 X 230 X 90

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 3 tariff
- Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem

Three Phases kWh Meter for Industrial

Rated Voltage(V)Vn

110/190V or Specific Vn

Operating Voltage(V)

70%~180% Vn

Rated Current(A)In

5 (1) A

0.2 / 0.5 Class

Bottom Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

20000 pulse/kWh

Terminal Hole size(mm)

165 X 210 X 75

※ This meter shall be designed according to IEC specification including DLMS.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 4 tariff, Daily, Weekly, Monthly,Season
- Programmable Block& Rolling Demand
- Load Profile with 4 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (6 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay & Line Pulse for Demand Controller
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Support AMR system(Inbound & Outbound)
