This Potable Accuracy Tester (PAT) is excellent for on-site measurement of meters and diagnosis of meter status in safety, also it provides easily accuracy test according to IEC, ANSI specifications.

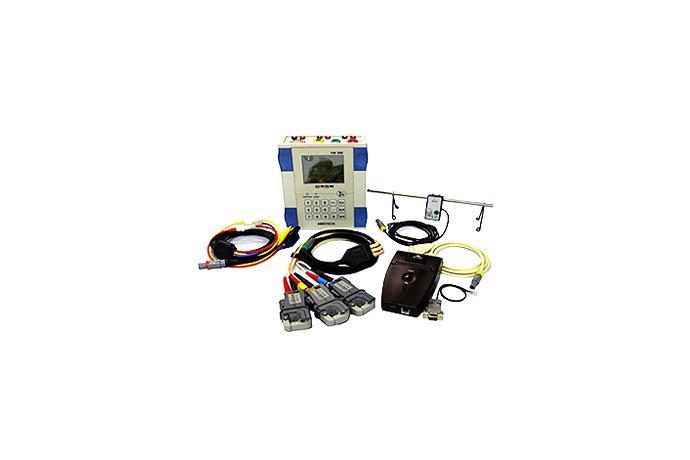

Composition of Potable Accuracy Tester

- Potable Accuracy Tester
- Clamp CT
- PT Connection wire & Connector
- Pulse Sensor
- Line Pulse Input Connector
- Potable Printer

PAT specifications

- Model Name: PSM-3000A
- Applied Meter : Single Phase, Three Phase
- Applied Voltage (V) : 60 ~ 500V
- Applied Current (A) : Upto 120A
- Dimension(mm) : 170 X 250X 80
- Weight (g) : 2500

※ This equipment shall be designed according to IEC and KEPCO specification.

Function

- Direct Energy Accuracy (Class 0.1%)
- Clamp Energy Accuracy (Class 0.2%)
- Each Phase Voltage & Current Measuring
- Active, Reactive Power Measuring
- Power Factor & Frequency Measuring
- Diagnosis of Meter status
