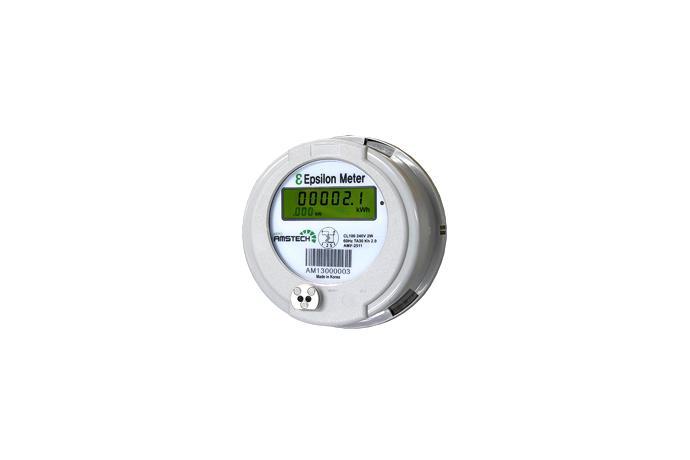

Single Phase Digital kWh Meter for North American Markets

AMF Series

Rated Voltage(V)Vn

Rated Current(A)In

100 (15) A / 200 (30) A

Under 0.5 Class

Phase & Wiring

Single phase 2 wires / Single phase 3 wires

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

1000 pulse/kWh

- Active energy (kWh) (Bi-Directional) /Reactive Energy
- Max. Demand & Average PF for 4 months
- Anti-Temper for 7 methods specially
- Normal measuring during the electrical theft was occurred
- Readjustment function for Energy Service Provider
- Easy installation for AMR module(Optional PLC, Zigbee, RF)
- Latch Relay (Option)

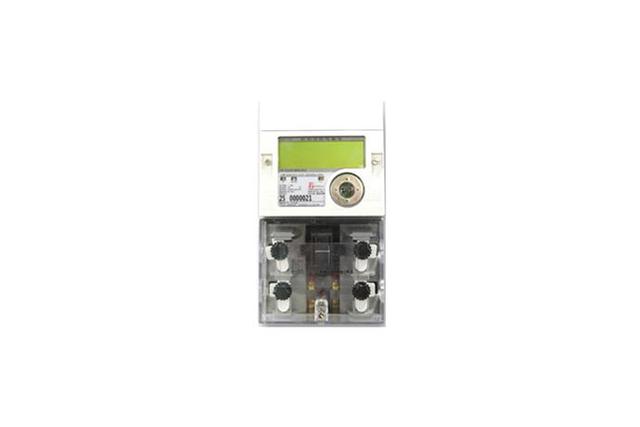

Threee Phase kWh Meter For over 200A Consumer

Rated Voltage(V)Vn

220V or Specific Vn

Operating Voltage(V)

50%~180% Vn

Rated Current(A)In

100 / 200 / 300 / 400 / 500 / 600 / 700 / 800 / 1000 A

0.5 / 1.0 Class

Direct Connection

Rated Frequency(Hz)

50 / 60Hz

Meter Constant

According Current

CT Hole size(mm)

According Current

※ This meter shall be designed according to IEC specification including DLMS.
※ This meters can be change without power failure using Clip CT.

- Active/Reactive energy (kWh/kVarh)-Bidirectional
- Apparent energy (kVAh)
- Programmable TOU – 6 tariff Programmable Block& Rolling Demand
- Load Profile with 2 Channels (over 100 days at 15 min.)
- Auto reading function(Demand Reset) & Data storage (4 months)
- Event Recording
- Instant Power Measuring(Voltage, Current, kW, kVar, PF, Frequency)
- Calendar and Clock
- Output Relay
- Communication Port( Optical & Serial for AMR, 2 port)
- Support DLMS/COSEM Protocol
- Built-in AMR Module (RF, PLC,TCP/IP Modem)
- Supply DC Power for AMR Modem
