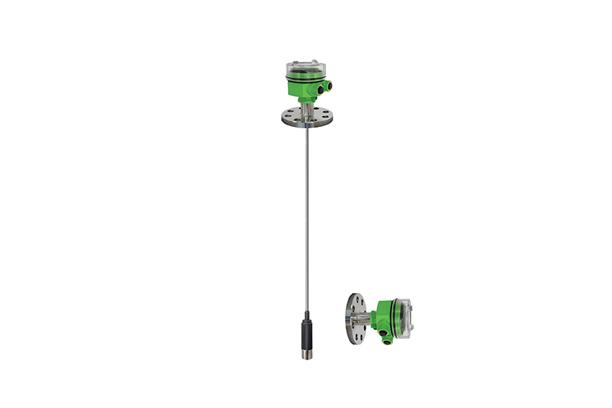

Hydrostatic Pressure Type Level Transmitter
Model Name
HT-100P Series
Series
Level Instrument
Data
카탈로그-하이트롤-레벨계-압력식 레벨 전송기-HT-100P 시리즈
Manufacturer information
provider logo
HITROL
Korea’s top class Flow and Level Instruments manufacturer with 45 years of history
Problem with product info?
Update request
Manufacturer
HITROL
Brand
-
SKU
130004
Product Name
Hydrostatic Pressure Type Level Transmitter
Model Name
HT-100P Series, HT-100PT, HT-100PS
Size
-
Weight
-
Product Details

Overview

HT-100P Series is a Hydrostatic Pressure Type Level Transmitter installing on top or side of tank continuously measures the liquid levels in the tank. It measures hydrostatic pressure and converts it to the current output, DC 4~20mA. It can be widely used in various industries such as PC Tank, Dam Surge Tank, Sluiceway, River and Wastewater without special work.







Characteristics

- Installation on top or side of tank

- Easy installation and maintenance

- No effect by a conductivity or composition change of medium

- High sensitive sensor is used.

- NAMUR NE43 is applied.







Operation Principle and Composition



- Piezoresistive Pressure Transducer is a sensor to continuously measure a hydrostatic pressure of a liquid according to the certain height of the liquid column. Hydrostatic pressure is calculated using the equation given below.

P=p x g x h

[P= Hydrostatic Pressure, p=Density of Liquid, g=Gravity of Acceleration, h=Height of Liquid Column]

- As seen in above equation, if density of liquid does not change, measured hydrostatic pressure is detected as an electric signal proportional to the height of liquid column, since the height of liquid column is only variable.









Specification







Wiring

- When wiring of power supply, + - should be wired correctly.

- Power source should be DC+17V ~ +40V.

- Power should be applied after completion of installation and wiring.









Setting

- Zero/Span adjustment is not required if there is no change of density or measuring range (Factory set according to measuring range and density of the medium).

- Zero/Span can be adjusted within ±10% of full scale if there is any change of density or measuring range caused by change of process condition.

- In order to set 0%, the pressure sensor should be positioned in atmospheric and turn the Zero Volume to current output of 4mA.

- In order to set 100%, the pressure sensor should be installed in the tank with filling of liquid to the desired full range level and turn the Span Volume to current output of 20mA.



Caution Maintenance
1) Touching or pushing to the diaphragm receiving pressure by anything of sharp object such as awl should be avoided and pay more attention not to damage to the sensor during installation.

2) For signal transmission cable, the shield cable should be used.

3) Except wiring or setting, the housing cover should be always closed.
1) The Diaphragm should be periodically (about 2-3 months) cleaned using fresh water in order to avoid blockage of the diaphragm by any substance.

2) Zero/Span can be adjusted within ±10% of full scale if there is any change of density or measuring range caused by change of process condition.







Dimension


◈ Actual product may have a tolerance slightly.







Installation

Below recommendation should be considered when installation.




Product should be installed at the place far from inlet in order to avoid the malfunction.


Protection tube should be applied if there is a flow or slopping of the medium in the tank.


Valve should be installed between the tank nozzle and sensor when the installation to the side of tank.
