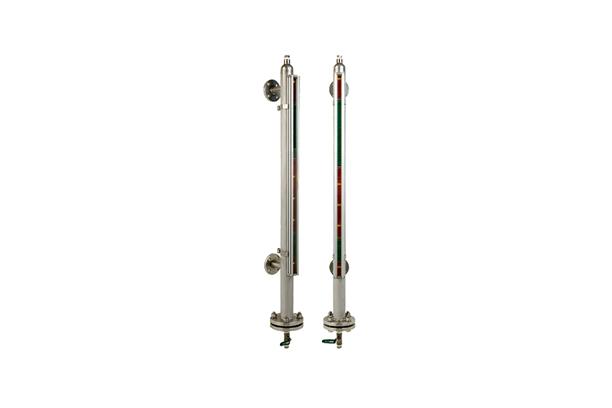

Magnetic Flap Level Gauge
Model Name
HLG-100F Series
Series
Level Instrument
Data
카탈로그-하이트롤-레벨계-마그네틱 플랩 레벨 게이지-HLG-100F 시리즈
Manufacturer information
provider logo
HITROL

Korea’s top class Flow and Level Instruments manufacturer with 45 years of history

Problem with product info?
Update request
Manufacturer
HITROL
Brand
-
SKU
130018
Product Name
Magnetic Flap Level Gauge
Model Name
HLG-100F Series, HLG-100F, HLG-100FT, HLG-100FS
Size
-
Weight
-
Product Details

Overview

HLG-100F Series is a Magnetic Flap Type Level Gauge which strengthens the weak point of glass level gauge and it continuously measures a liquid levels in a tank, can be used combining with a level transmitter and/or level switch. It has a chamber type installation method and the liquid level can be easily read through the change of flap color.







Characteristics

- Easy installation for the measurement of liquid levels in various tanks

- Suitable to be used for the tank requires current output (DC 4-20mA) and contact (SPST or SPDT) as well as local indication simultaneously.

- Flange or socket as a process connection is available as per the site condition.

- Applicable to the explosive liquid (volatile liquid) and harmful liquid

- Available to use for high temperature and pressure process







Operation Principle and Composition

A float which is located in a chamber moves up or down as per liquid level in a tank and a built-in magnet in a float changes the color of indicating flap by magnetism, indicates liquid level in the tank by a flap color.









Specification



▶Level Gauge





▶Indicator





▶ With Transmitter





▶With Switch







Dimension

Stainless Steel

HLG-100F (Standard)

HLG-100FT (With Transmitter)

HLG-100FS (With Adjustable Switch)

HLG-100FS (With Fixed Switch)



Teflon

HLG-100F (Standard)

HLG-100FT (With Transmitter)

HLG-100FS (With Adjustable Switch)

HLG-100FS (With Fixed Switch)

* Actual Product may have a tolerance slightly.







Installation

Below drawing Should be considered when installation.
