Features and Benefits

- 10 high-intensity chip LED

- Two red LEDs flash at 20% to alert the "battery charge" warning signal

- One red LED flashes at 10% to indicate the battery charge is nearing

- It recognizes improper battery charge charging of the battery

- When the key switch is turned Off/On, the memory in the gauge remembers and displays the charge status

- One red LED flashes when the battery voltage is kept at low voltage for 20 seconds

- It indicates the battery status (LED display: 100% ~ 10%)

- All LEDs are lit only when the battery is fully charged

- LEDs are turned off one by one from the right as the battery charge status decreases







Applications

- Golf car

- Commercial cleaning equipment

- Electric bicycle

- Electric bicycle

- Electric forklift and electric carrier for farming, etc







Configuration of Operation Switch

- Respective main screens and 4 modes

- Modes can be changed using MODE button

- To inspect respective modes and items, use UP and DOWN button

- The parameters can be modified using SET button







Specifications

- Operating voltage: 12V, 24V, 36V, 48V

- Operating temperature: -20 ℃ to 85 ℃

- Storage temperature: -30 ℃ to 90 ℃

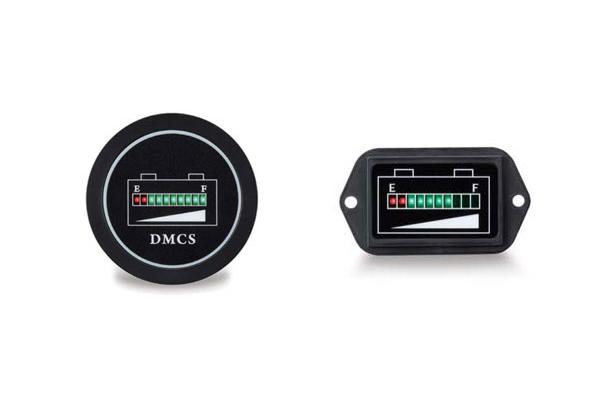

Product Description

- BDI is an easy to install, inexpensive device, reliable and accurate. It reads and displays the battery charge status

- It uses PCB with built-in IC and users can easily install it







Cautions

- the charging status of this product does not take into account the self-discharge effect, so it does not measure the battery according to the unused time

- Charge and discharge time will vary according to Full and Empty setting values, depending on the battery specifications

- For further information, please contact us
