Series Motor

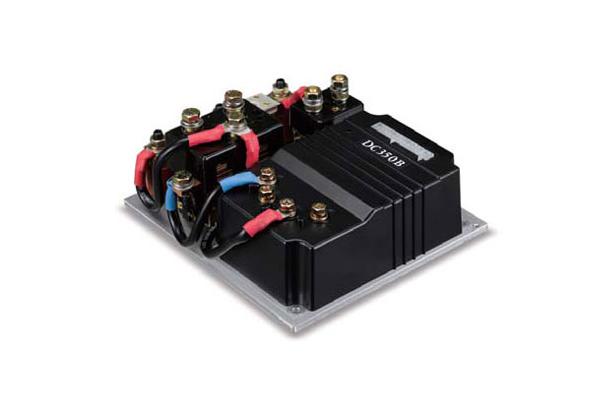

Model : DC350BS / DC250BS / DC200BS (120×188×70mm)







DC350BS Features and Benefits

- It can be used for the reach type domestic forklift and imported forklift of less than 1.8 tons

- It reduces costs because the existing accelerators and magnet contactor can be used

- Small size makes it easy to mount

- Flexible program customization- It enables it to customize the program according to user-specific functions and use environment







DC250BS / DC200BS Features and Benefits

- It can be used for domestic and imported electric pallets







General Features

- The maximum current is 350A when bypass is not used (DC350BS)

- Other general features are same as DC650B

- Built-in motor brake function

- Built-in Turtle function

- Built-in MAX speed control

- 24V-48V

- Emergency brake function







Specifications

Model name		DC350BS	DC250BS	DC200BS
Battery voltage		12V~48V
Current limit value	1 minute	350A	250A	200A
	1 hour	115A	100A	80A
Operating temperature		-30℃~80℃
Weight		1.4Kg
Switching frequency		15KHz
Length x Width x Height (mm)		120×188×70





Applications

- Electric forklift - Reach type

- Electric carriers - Factories, Agricultural Products

- Distribution center and logistics centers, etc

- Electric stacker

- Electric pallet truck (Walking type/Boarding type)

- Small carrier (towing vehicle)

- Ladder truck, etc.
