Series Motor

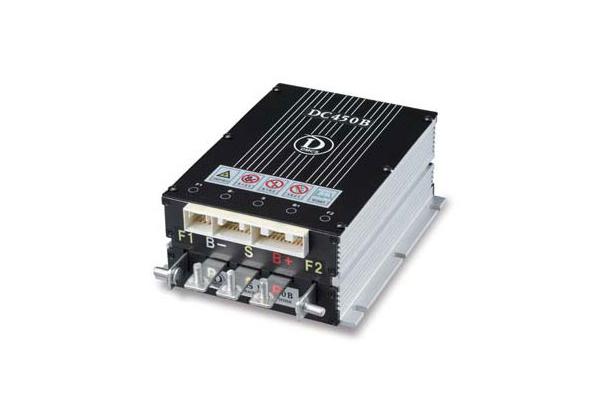

Model : DC650B / DC550B / DC450B (272×190×90.5mm)





DC650B / DC550B Features and Benefits

- The only product in Korea with function and durability that exceeds those of imported products

- It is possible to use the existing accelerator and magnet contactor when modifying domestic and imported forklift

- Small size makes it easy to mount

- Flexible program customization- It enables it to customize the program according to user-specific functions and use environment







DC450B Features and Benefits

- It can be used for the reach type domestic forklift and imported forklift with weight of more than 2 tons

- It reduces costs because the existing accelerators and magnet contactor can be used./li>







General Features

- It is possible to select either power input or ground input for the operation of respective switches (hardware option)

- It is possible to use control panel or checker numerical changes for various systems

- It is possible to set minimum input voltage and maximum input voltage of the accelerator

- Serial communication

- Anti-rollback function (prevents backward movement when starting on uphills)

- Linkage between driving system and hydraulic system

- Built-in remaining battery capacity and use time

- Emergency brake function







Specifications

Model name		DC650B	DC550B	DC450B
Usage		Driving	Hydraulic	Driving
Battery voltage		24V~48V
Current limit value	1 minute	650A	550A	450A
	1 hour	225A	185A	135A
Operating temperature		-30℃~80℃
Weight		4Kg	3.8Kg	4Kg
Switching frequency		15KHz
Length x Width x Height (mm)		272×190×90.5









Applications

- Electric Forklift-Count Balance (C / B) type

- Electric forklift-Reach type

- Electric carriers-Factories, Agricultural products distribution center and logistics warehouse

- Personal Carrier-Personnel transport equipment

- Unmanned carrier (AGV)

- Industrial utility vehicles

- Electric bogie-rackless Track type
