P.M Motor

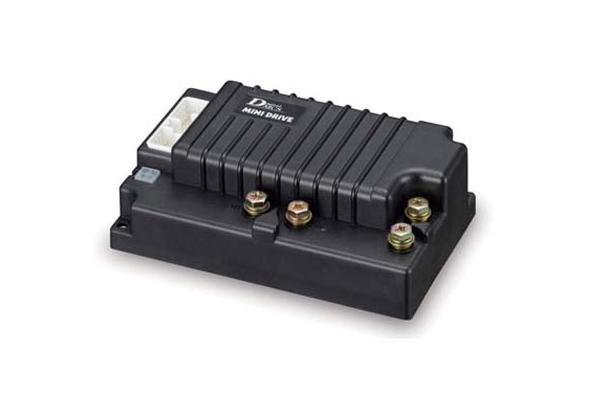

Model : MINI DRIVE (162×98×51.5mm)







Features and Benefits

- Electric braking system according to the accelerator

- Lamp display in the event of an error

- ack Horn output when back

- BDI (battery remaining capacity) output (0 ~ 5V)

- Electric brake control output

- Electric brake control output

- Flexible program customization- It enables it to customize the program according to user-specific functions and use environment







Specifications

Model name	MINI 250S/200S	MINI 110S/MINI60S
Battery voltage	12V~48V
Current limit value	250A/ 200A	110A/60A
Operating temperature	-30℃~80℃
Weight	1.3Kg	0.8Kg
Switching frequency	20KHz
Length x Width x Height(mm)	188×120×70	162×98×51.5







Applications

- Electric carriers for farming

- Industrial electric car

- Electric wheelchair, electric scooter

- Table lift

- Electric ATV, Electric bumper car

- Unmanned carrier (A.G.V), Bogie

- Feeding system

- Yakurt cart

- Children's train
