Angle Cutting Machine

Model Name

HFA-5035RS

Series

Products

View AllView All Series

Data

Manufacturer information

DELTA MACHINE

Sawing machine manufacturer, Ultra high speed band saw, Angle cutting machine, Industrial high speed cutting machine

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

DELTA MACHINE

Product Type

Machine

Brand

SKU

12718

Product Name

Angle Cutting Machine

Model Name

HFA-5035RS

Size

Weight

Product Details

Features

- Fully automatic NC control and touch screen
- Display blade speed, cutting length and angle on the screen
- Easy and exact angle control by encoder
- Inverter controlled variable blade speed
- Accurate angle cutting by twin post type
- Self diagnosis system & input and output monitering
- Good for miter cutting of large H-beam

Specifications

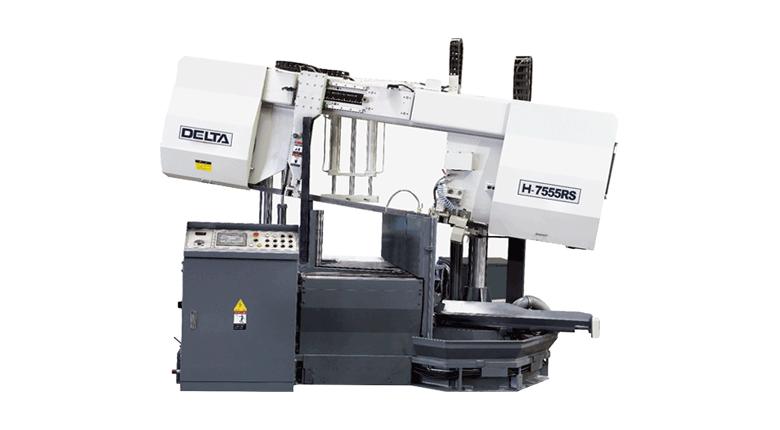

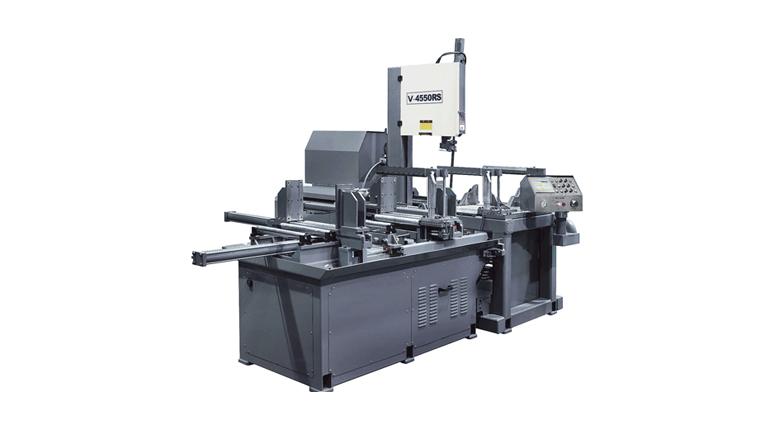

Model		HFA-5035RS		HFA-6042RS		H-7555RS		V-4550RS
Control Method		Fully Automatic & NC System		Fully Automatic & NC System		Semi Automatic & NC System		Fully Automatic & NC System
Cutting Capacity	Angle	0。	45。	0。	45。	0。	45。	0。	±45。
	Round	Ø350	Ø320	Ø450	Ø400	Ø550	Ø520	Ø460	Ø340
	Square	500×350mm	320×350mm	600×420mm	400×420mm	770×550mm	520×550mm	460×500mm	50×300mm
Blade	Size	4570×34×1.1mm		5500×41×1.3mm		8100×54×1.6mm		4880×34×1.1mm
	Speed	15~115m/min		15~115m/min		15~115m/min		15~115m/min
Motor	Drive	4kw		5.5kw		7.5kw		4kw
	Hydraulic	1.5kw		1.5kw		2.2kw		1.5kw
Tank Capacity	Cutting Fluid	0.1kw		0.1kw		0.1kw		0.1kw
	Hydraulic	50ℓ		60ℓ		100ℓ		80ℓ
	Cutting Fluid	80ℓ		100ℓ		80ℓ		100ℓ
Stroke		1000mm		1000mm		NA		1020mm
Weight		2,500kg		3,500kg		6,500kg		2,500kg
Floor Space (W×L×H)		2350×3550×2030mm		2950×3750×2450mm		3800×2230×2370mm		3000×3950×2650mm
