DELTA MACHINE

DELTA MACHINE

H-Series - Middle/Small Size

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

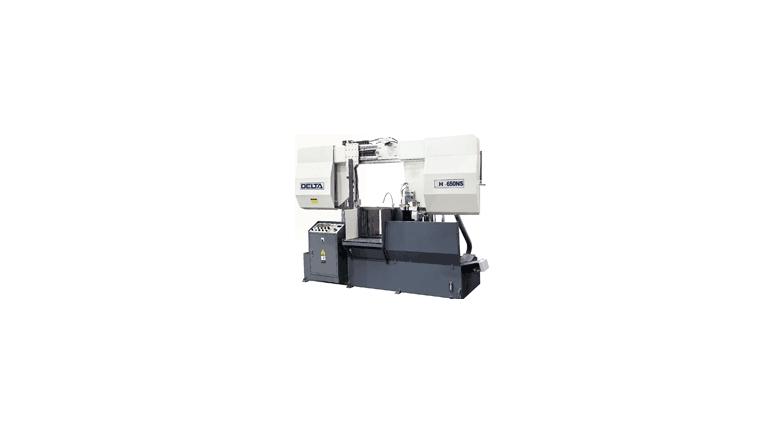

DELTA MACHINE H-Series - Middle/Small Size H-Series

Features

- Semi auto and PLC
- Infinitely variable blade speed by inverter
- High precision reducer
- robust body structure
- Hydraulic blade tension
- Auto moving blade guide arm
- LED work light


Standard Accessaries

- Tool(1set)
- Saw blade(One)
- Instruction manual(Part1)
- Chipukon Bear
- Infinitely
- Vice upper(1Trillion)


Optional Accsessaries

- Vice Clamping power reducing valve
- Roller Table 2M
- Inclined cutting detection device



Specifications

Model HFA-350NS HFA-450NS HFA-520NS HFA-560NS HFA-650NS
Control Method Semi Automatic & NC System
Cutting
Capacity
Round 10~350mm 15~450mm 20~520mm 20~560mm 20~650mm
Square 350×350mm 450×450mm 520×520mm 610×560mm 650×650mm
Bundle 250×140mm 350×200mm 400×230mm 500×230mm 500×250mm
Saw Blade Speed 15~115m/min 15~115m/min 15~115m/min 15~115m/min 15~115m/min
Size(L×W×T) 3980×34×1.1mm 4880×41×1.3mm 5800×41×1.3mm 6700×54×1.6mm 7530×54×1.6mm
Tension Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Motor Band Drive 4kw 5.5kw 7.5kw 7.5kw 7.5kw
Hydraulic System 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw
Coolant Pump 0.1kw 0.1kw 0.1kw 0.1kw 0.1kw
Tank
Capacity
Hydraulic 50ℓ 60ℓ 70ℓ 100ℓ 100ℓ
Cutting Fluid 60ℓ 80ℓ 100ℓ 70ℓ 70ℓ
Weight 1,800kg 2,700kg 3,200kg 3,500kg 3,800kg
Floor Space (W×L×H) 2150×1100×1650mm 2400×1190×1900mm 2800×1210×2010mm 3035×1290×2160mm 3520×1310×2480mm
