DELTA MACHINE

DELTA MACHINE

H-Series - Large Size2

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

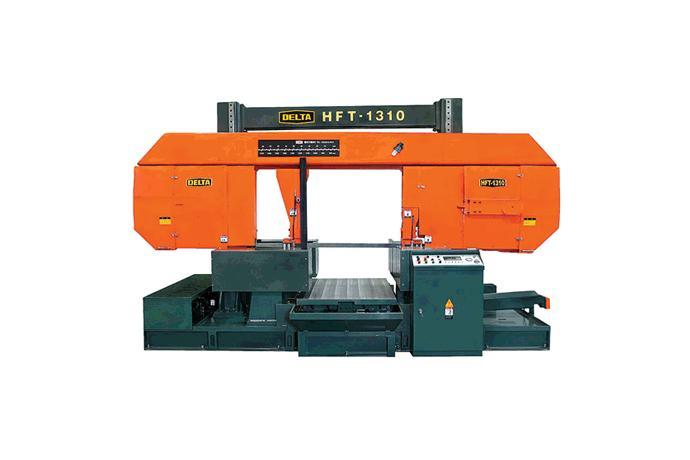

DELTA MACHINE H-Series - Large Size2 HFT-1310

Features

Semi-automatic NC System
LCD DISPLAY(톱날속도, 절삭깊이, 작업수량 등)
Cutting performance up by Roller LM guide & Gantry column
Infinitely variable blade speed by inverter
고정밀 감속기(독일 SEW) 사용으로 절삭력 극대화
60STEP 제어 가능한 유량조절기 및 절삭유 3방향 공급
텐션휠 전면부 실린더 사용으로 휠과 톱날보호
3POINT ROD VISE 사용으로 소재고정압력 최적화 및 작업등 설치
톱날가이드암 소재크기에 따라 자동이송으로 편리성 제고
열처리 도금 이송바 사용 및 실린더로드 열처리로 내구성 강화
Self diagnosis system & input and output monitering


Standard Accessaries

- Tool(1set)
- Saw blade(One)
- Instruction manual
- Inverter
- Screw type Chipukon Bear


Optional Accessories

- SteelBelt type Chipukon Bear
- 보조 소재적치대(1.5m)
- Inclined cutting detection device



Specifications

Model

HFT - 1310

Operating Method

Semi Auto & NC System

Cutting Capacity

Ø600~1000

1300x1000㎜

Length

1~9999mm

Blade

Size

11880x67x1.6mm

Speed

15~80m/min

Tension

Hydraulic

Motor

Saw Drive

11.0kw

Hydraulic System

3.75kw

Coolant Pump

0.4KW

Tank Capacity

Hydraulic Oil

130ℓ

Coolant Fluid

100ℓ

Material Clamping

Double Acting Vice

Weight

16,000Kg

Floor Space (W×L×H)

5300 x 2800 x 3200㎜
