Manufacturer
CLEANTEC
Product Type
Machine
Brand
-
SKU
4833
Product Name
CNC Vertical Honing Machine
Model Name
CVH-03S, CVH-06S, CVH-12S, CVH-03D, CVH-06D, CVH-12D
Size
-
Weight
-
Product Details

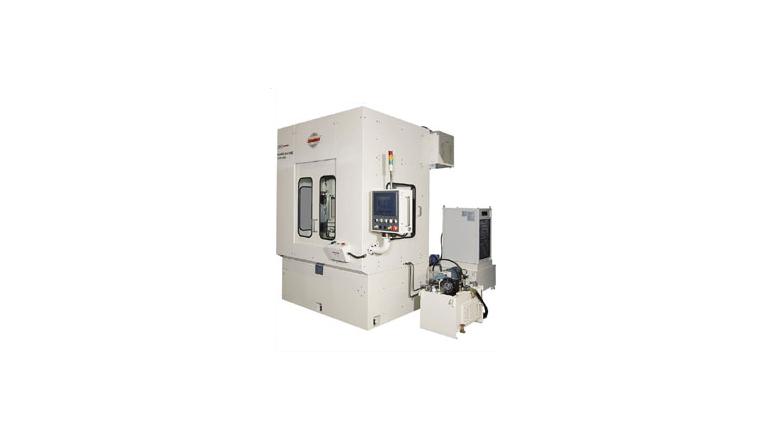

CNC Vertical Honing Machine
Product features
- Numerical value input sets the position conveniently, and makes it possible to meet accurate position-control with servo motor and ball screw.
- One of the most appropriate Honing Machine for high efficiency, and high level of honing process applied to small and midium bore.
- Convenient operation by loading one of the data among the data for each products saved before.
- The process is controlled in real time with private touch monitor. In case of error, the error message is indicated in the monitor so that maintenance and repair are easy.
|
CVH-03S |
CVH-03S |
|
CVH-03D |
CVH-03D |
Specification
| Spec.\Model | CVH-03S | CVH-06S | CVH-12S | CVH-03D | CVH-06D | CVH-12D | |
|---|---|---|---|---|---|---|---|
| Max.honing dia.(mm) | Ø12~Ø30 | Ø30~Ø60 | Ø60~Ø120 | Ø12~Ø30 | Ø30~Ø60 | Ø60~Ø120 | |
| Max.honing length. (mm) | 100 | 200 | 300 | 100 | 200 | 300 | |
| No. of spindles | 1 | 2 | |||||
| Spindle speeds (rpm) | 1200 | 800 | 400 | 1200 | 800 | 400 | |
| Reciprocating speeds (m/min) | 25 | 20 | 20 | 25 | 20 | 20 | |
| Stone expansion system | Pneumatic typㆍHydraulic type(Option: Machine expansion type) | ||||||
| Sizing system | Timerㆍplug gauage (Option : Air micro meter) | ||||||
| Motor | Spindle drive (Kw) | 1.5 | 3.7 | 11 | 1.5 | 3.7 | 11 |
| Spindle drive (W) | 250 | 250 | 400 | 250 | 250 | 400 | |
| Floor area (mm) | 1500X2500 | 1500X2500 | 2000X3500 | 2500X2500 | 2500X2500 | 3500X3500 | |
| Overall height (mm) | 2600 | 2600 | 3600 | 2600 | 2600 | 3600 | |
| Weight (kg) | 2500 | 3000 | 3500 | 3500 | 4000 | 4500 | |
