Product Name

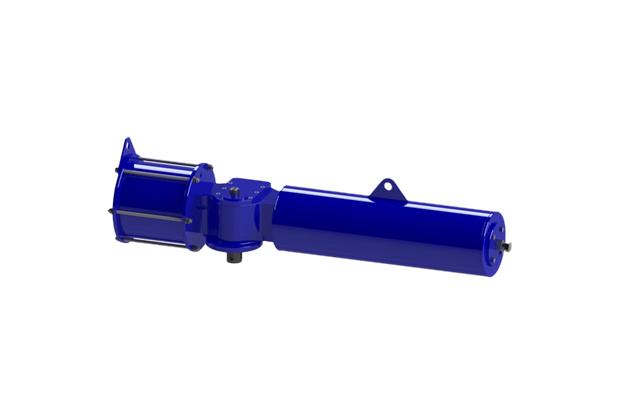

Pneumatic Actuator (Heavy Duty Type)
Model Name
AS250D, AS300D, AS350D
Size
-
Weight
-
Product Details
Specification
| Item | AS250D | AS300D | AS350D |
| Operating Type | Scotch - Yoke | ||
| Operating Media | Compressed Dry Air | ||
| Operating Pressure | 4.5 ~ 7kg/cm2 | ||
| Rotating Angle | 90° ±5° | ||
| Operating Temperature | '-20°C ~ 80°C(Option : -40°C ~ 200°C) | ||
| Weight(kg) | 160 | 270 | 380 |
Part and Material
| No. | Part Name | Materials | No. | Part Name | Materials |
| 1 | Body | Steel Alloy | 22 | Piston Fixing Bolt | Stainless Steel |
| 2 | Shaft | Steel Alloy | 23 | Cylinder Cover(Out) | Steel Alloy |
| 3 | Shaft O-ring(Bottom) | NBR | 24 | Holder | Steel Alloy |
| 4 | Shaft Bush | Engineering Plastic | 25 | Cylinder Cover Washer(Out) | Stainless Steel |
| 5 | Shaft O-ring(Top) | NBR | 26 | Cylinder Cover Bolt(Out) | Stainless Steel |
| 6 | Yoke | Steel Alloy | 27 | Stopper Washer | Stainless Steel |
| 7 | Yoke Block | Steel Alloy | 28 | Stopper Nut | Stainless Steel |
| 8 | Body Cover | Steel Alloy | 29 | Stopper Bolt | Stainless Steel |
| 9 | Body Cover Bolt | Stainless Steel | 30 | Spring Rod | Steel Alloy |
| 10 | Piston Rod | Steel Alloy | 31 | Spring Case Blot | Stainless Steel |
| 11 | Piston Rod Bush | Engineering Plastic | 32 | Spring Rod Bush | Engineering Plastic |
| 12 | Cylinder Cover Bolt(In) | Stainless Steel | 33 | Spring Case | Steel Alloy |
| 13 | Cylinder Cover Washer(In) | Stainless Steel | 34 | Spring Guide | Steel Alloy |
| 14 | Cylinder Cover(In) | Steel Alloy | 35 | Spring | Steel Alloy |
| 15 | Cylinder Bolt | Stainless Steel | 36 | Spring Fixing Washer | Stainless Steel |
| 16 | Piston Rod O-ring | NBR | 37 | Spring Fixing Bolt | Stainless Steel |
| 17 | Cylinder | Steel Alloy | 38 | Retainer | Steel Alloy |
| 18 | Cylinder Guide Bolt | Steel Alloy | 39 | Spring Case Cover | Steel Alloy |
| 19 | Piston | Steel Alloy | 40 | Spring Case Cover Bolt | Stainless Steel |
| 20 | Piston O-ring | NBR | 41 | Spring Stopper Nut | Stainless Steel |
| 21 | Piston Fixing Washer | Stainless Steel | 42 | Spring Stopper Bolt | Stainless Steel |
Torque Table
| Unit : mm | |||||
| Model | Angle | Supply Air | |||
| 4bar | 5bar | 6bar | Spring | ||
| AS250D | 0° | 1,170 | 1,810 | 2,350 | 1,300 |
| 45° | 590 | 950 | 1,340 | 840 | |
| 90° | 930 | 1,800 | 1,980 | 1,470 | |
| AS300D | 0° | 2,400 | 3,650 | 4,800 | 2,550 |
| 45° | 1,180 | 1,850 | 2,500 | 1,500 | |
| 90° | 1,760 | 3,160 | 4,600 | 3,130 | |
| AS350D | 0° | 4,650 | 6,800 | 8,900 | 3,650 |
| 45° | 1,450 | 2,600 | 3,700 | 2,730 | |
| 90° | 1,330 | 3,200 | 5,250 | 5,200 | |
Dimension
| Unit : mm | |||||||||
| Model | L1 | L2 | ØA | ØD | S | KEY | ØC | N-M | PT |
| AS250D | 445 | 1000 | 313 | 55 | 65 | 16 x 10 | 165 | 4-M20 | PT 3/8" |
| AS300D | 545 | 1085 | 370 | 70 | 85 | 20 x 12 | 254 | 8-M16 | PT 3/8" |
| AS350D | 720 | 1120 | 410 | 80 | 85 | 28 x 16 | 298 | 8-M20 | PT 1/2" |
