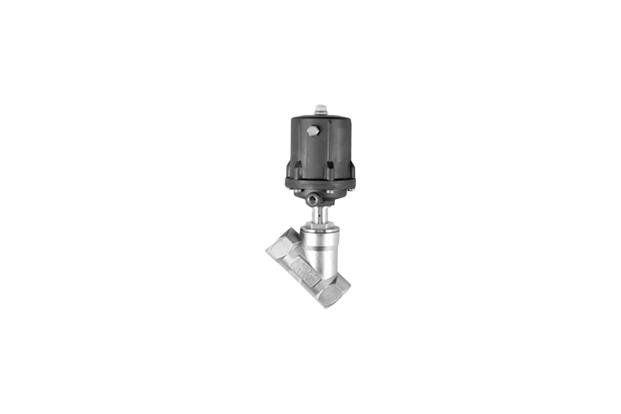

product Image
Automatic Valve (Y Type Valve)
Model Name
AGV-15Y
Series
Pneumatic Products
Data
-
Manufacturer information
provider logo
AUTOMA

Automatic valve, Electric ball valve, Control valve, Globe valve, Actuator and more

Problem with product info?
Update request
Manufacturer
AUTOMA
Product Type
Machine
Brand
-
SKU
135231
Product Name
Automatic Valve (Y Type Valve)
Model Name
AGV-15Y, AGV-20Y, AGV-25Y, AGV-32Y, AGV-40Y, AGV-50Y
Size
-
Weight
-
Product Details



Specification

Valve Size 15A ~ 50A
Actuator Type Cylinder Type
Actuator Action Single Acting (Spring Reuurn)
Operating Media Compressed Dry Air
Operating Press 405 ~ 7kg/㎠
Liner Adjust None Manual Handle
Fluid Temp Valve:-10℃ ~ 180℃
End Connection Female thread, socket welding Flange type(Option)
Body Material SUS316
Leakage allowance ANSI Class VI
Accessory Limit Switch Box, Air Filter Regulator





Dimension

Unit : mm
Model Size E A B C D H L PT-B
AGV-15Y 15A 1/2C ø50 174.5 158 27 ø68 144.5 84 1/4"
AGV-20Y 20A 3/4" ø50 182 163.5 34 ø68 146.5 94 1/4"
AGV-25Y 25A 1" ø63 211 192.5 40 ø84 172.5 104 1/4"
AGV-32Y 32A 1-1/4" ø63 225 211.5 49 ø84 187 120 1/4"
AGV-40Y 40A 1-1/2" ø80 252 238.5 55 ø105 211 130 1/4"
AGV-50Y 50A 2" ø80 275 267 70 ø105 232 150 1/4"
