Paper Taped D & Offset Head Nail Collator

모델명

시리즈

Paper Strip


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


053-585-7128

제품 상세 설명

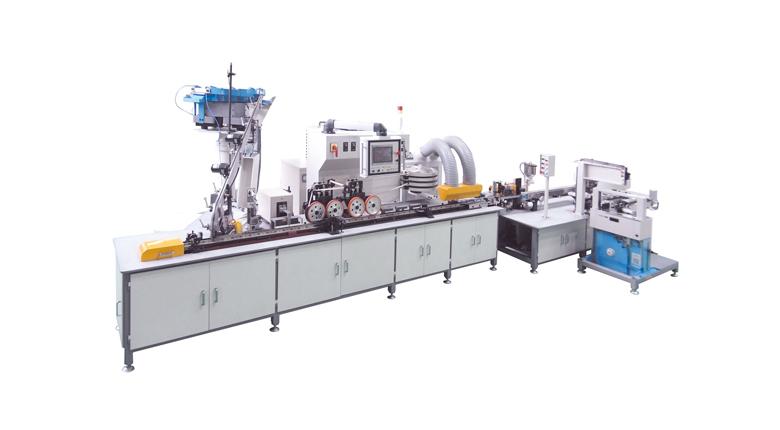

This horizontal gap adjustable dual lane belt feeding paper taped nail collator will produce 2,000 nails per minute with precise angle, spacing and head arrangment. Equipped with round end feeding rail, adjustable dual lane belt, induction nail pre heater, roll feed tape cartridge, quick cooling unit, rotary cutter, spary roller coater and automatic adjustable stacker.



SPECIFICATION

Collating Speed Up to 2,000 Nails per Min
Nail Size Length 1-1/4"~4" (32 ~100mm)
Diameter 0.099"~0.162" (2.51~4.11mm)
Strip Spec Angle Any Angle
Nails per Strip 20~40 Nails
Electric Power 45KVA, 3Phase 220V, 50/60 Hz
Air Consumption 500 Litter per Min
Electronic Mfg As Specified by Customer
Pneumatic Mfg As Specified by Customer
Space Required 27L x 9.5W x 7H in feet (8,300L x 2,900W x 2,200H in mm)
Weight 7,700 Lbs (3,500 Kg)



SAMPLE PRODUCT

Zeus Techno Inc. Paper Taped D & Offset Head Nail Collator MP-2
