Service intended

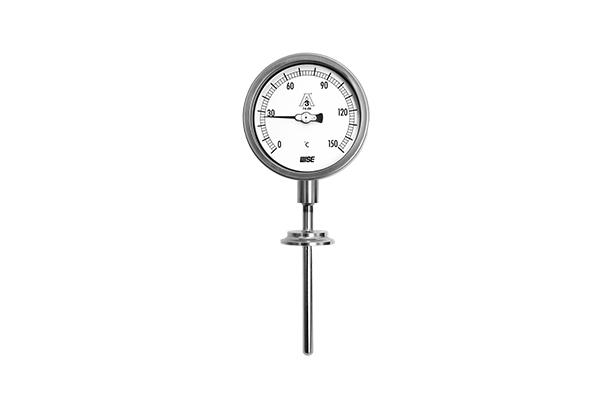

Sanitary bimetal thermometer is used for measuring temperature of corrosive and contaminated materials. Its usage expands to food, beverage, biochemical and pharmaceutical industry.
| Nominal diameter | 75 and 100 mm |
| Accuracy | ±2.0 % of full scale |
| Temperature element | Coiled bimetal |
| Working range | Maximum scale value |
Standard features
| Location of stem | Bottom connection, direct |
| Case | 304SS |
| Cover | 304SS |
| Window | Glass |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Stem | 6.0, 6.4 and 8.0 mm diameter 304SS, 316SS and 316L SS |
| Zero adjustment | Internal |
| Stem, process connection | Tri-clamp 1S, 1½S, 2S |
| Option | ±1.0 % of full scale |
