Service intended

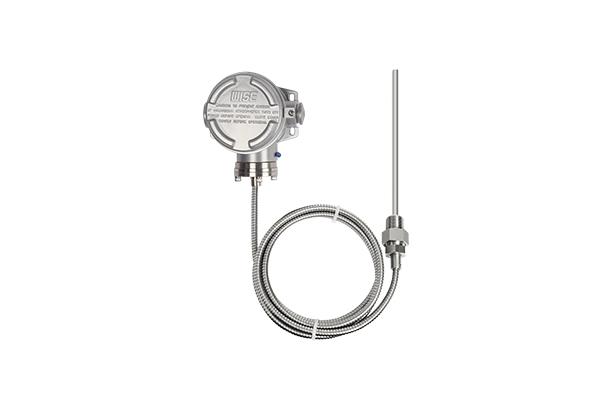

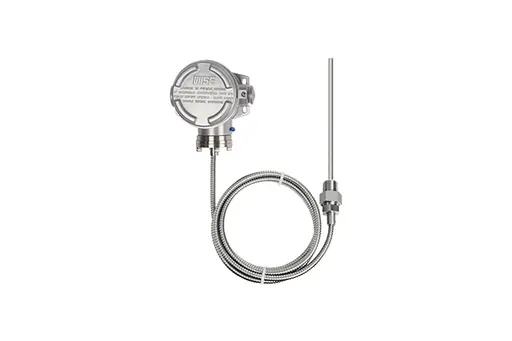

This temperature switch is installed with a micro contact, and it is suitable for measuring the temperature of corrosive fluid. Dead band is fixed.
| Repeatability | ±1.0 % of adjustable range |
| Dimension | Refer to type of mounting |
| Measuring system | Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 300 °C |
| Working range | Maximum scale value |
| Working temperature | Ambient : -40 ~ 65 °C |
| Degree of protection | EN60529/IEC529/IP67 |
Standard features
| Location of stem | Bottom connection, surface, case mounting |
| Case | Silver gray finished aluminium |
| Cover | Silver gray finished aluminium |
| Capillary | Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS |
| Stem | 8.0, 10.0 and 12.0 mm 316SS and 316L SS |
| Stem, process connection | ⅜", ½", ¾" PT, NPT and PF |
| Conduit connection | ¾"NPT(F) |
| Switch form | Micro contact type One SPDT (Model : T953-1B3) Two SPDT (Model : T953-2B3) |
| Certificates | KCS Ex d IIC T6 ATEX II 2G Ex d IIC T6 Gb IECEx Ex d IIC T6 Gb |
