Service intended

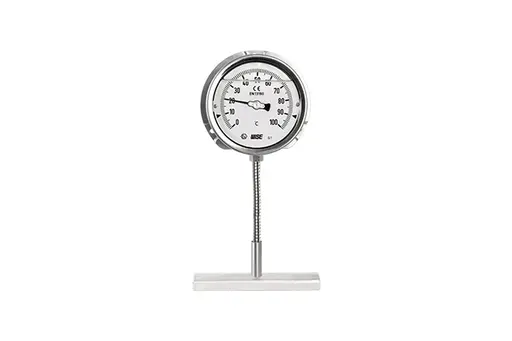

Liquid filled thermometer is used for measuring temperature of various pipes and tanks external in all industries, operated in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
| Nominal diameter | 100 and 150 mm |
| Accuracy | ±2.0 % of full scale (Standard) |
| Measuring system (SAMA class ⅢB) | Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C |
| Working range | Maximum scale value |
Standard features
| Location of stem and mounting | Bottom connection, surface, case mounting |
| Case | 304SS |
| Cover | 304SS |
| Capillary | Capillary : 1.6/0.2 mm, 316SS Armored tube : 6.5/4.5 mm, 304SS |
| Window | Tempered safety glass |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Mounting bracket | 120 x 22 x 12 (mm) 316SS |
| Filled fluid in case | Glycerin or silicone (Option) |
| Zero adjustment | Internal |
| Stem connection | Surface mounting |
| Option | ±1.0 % of full scale |
