Service intended

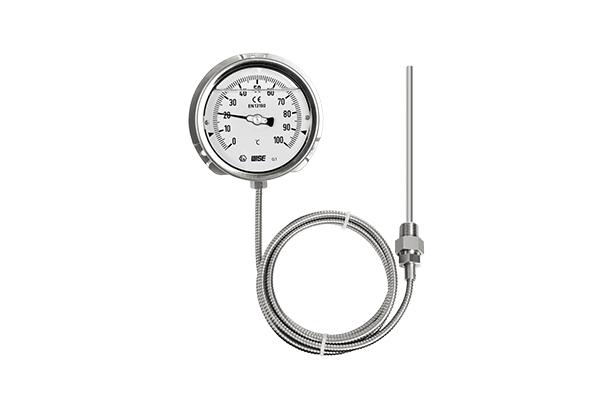

Liquid filled thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
| Nominal diameter | 100 and 150 mm |
| Accuracy | ±2.0 % of full scale |
| Measuring system (SAMA class ⅢB) | Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C |
| Working range | Maximum scale value |
Standard features
| Location of stem and mounting | Bottom connection, surface, case mounting lower back connection, flush, case center mounting bracket |
| Case | 304SS |
| Cover | 304SS |
| Capillary | Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS |
| Window | Tempered safety glass |
| Dial | White aluminium with black graduations |
| Pointer | 304SS, Black painted |
| Stem | 8.0, 10.0 and 12.0 mm 316SS and 316L SS |
| Filling liquid | Glycerin or silicone |
| Stem, process connection | ⅜", ½", ¾" PT, NPT and PF |
| Option | ±1.0 % of full scale |
