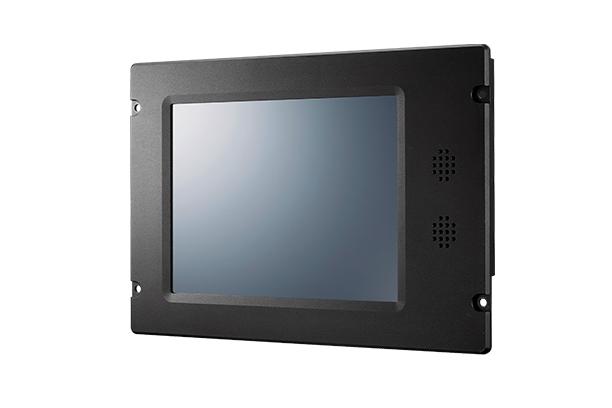

12.1 Inch Marine Panel PC
모델명
TIP-121NT
시리즈
선박 · 해양용
전체보기
자료
catalog-tetradyne-TIP-121NT
구매정보
provider logo
(주)테트라다인

산업용, 선박용, 방산용 모니터 및 컴퓨터, 터치패널 제작업체

연락처
02-323-4972
이메일
sales@tetradyne.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
(주)테트라다인[바로가기]
제품 타입
기계
브랜드
-
SKU
124509
제품명
12.1 Inch Marine Panel PC
모델명
TIP-121NT
사이즈
-
중량
-
제품 상세 정보

GENERAL

This specification defines the requirements for the TIP-121NT TFT LCD Display Panel PC, which is designed and tailored for use in operator display and computer-operating systems such as AMS, VRC, CPC, SPM and other monitoring, controlling application.

TIP-121NT is type-approved by ABS, BV, CCS, DNVGL, KR, LR.





KEY FEATURES

- Resistive Touch screen

- RGB, DP and HDMI Display

- LAN Communication





SPECIFICATION

GENERAL FEATURE
Section Specifications
Display type LED Backlight , Wide TFT LCD
Viewable Size 12.1 inch diagonal
Resoultion 1024 x 768
Aspect Ratio 4:3
Brightness 500 cd/㎡
Contrast Ratio 700:1
Response Time 35 ms
Active Area 245.76 (H) x 184.32 (V) mm
Viewable Angle 160° RL / 160° UD
Suport Color 16.2M colors
Synchronization Range 31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Touch type 5-Wire Resistive
Dimming 3 ~ 100%
System CPU Intel Core i3-2310M (2.1GHz, 3M)
Chipset Intel QM67 Express
Memory 1 x DDR3 4GB SO-DIMM
Storage 1 x SSD 128GB
Graphic Intel HD Graphics 3000 processor
LAN 1 x Intel 82579LM Gb/s Ethernet controller PHY onboard as LAN1
1 x Realtek RTL8111C Gb/s Ethernet controller onboard as LAN2
Connector Types 1 x HDMI (Standard)
1 x DP (Standard)
1 x RGB (D-SUB 15p female)
2 x RJ45
6 x USB 2.0 (2 x Front, 4 x Rear)
2 x COM (COM1 : RS-232/422/485, COM2 : RS-485 Only)
Power Specification 100~230 VAC 50/60Hz (IEC Standard Type)
DC18~32V (Terminal Block)
Power Consumption 100W (MAX)
Dimension 330 (W) x 78 (D) x 270 (H) mm
Weight 3.98 kg
Temperature Range Operating : 0° to 60℃
Non-Operating : -20° to 80℃
Humidity Range Operating : up to 95%
Non-Operating : up to 95%
Supported OS Windows 7 Professional
Option 1 x DDR3 8GB SO-DIMM (MAX)
1 x SSD 1TB (MAX)
Windows XP
Windows XP Embedded
Windows 7 Embedded
IP-Rating IP65 Front
Certification ABS, BV, CCS, DNV GL, KR, LR
Warranty 24 months

DRAWING
