[단종] 100Mbps Ethernet Converter
모델명
시리즈
단종
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명

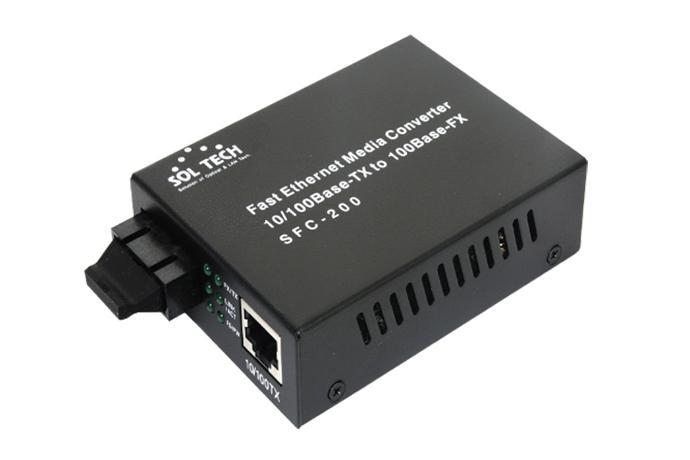

10/100Mbps-TX to 100Mbps-FX Fast Ethernet Converter
- 100Mbps-TX to 100Mbps-FX
- Multi-mode 2km, Single-mode ~100km
- LLCF(Link Loss Carry Forward)
- LLR(Link Loss Return)
- Provide Diagnostic LED Indications
- One fiber WDM Converter(SFC200-SCSW)
- Compliant with IEEE802.3.10Base-T and IEEE802.3u 100Base-TX,100Base-FX Ethernet
Standards
- Auto-Negotiation for 100Mbps-TX Half-Duplex or 100Mbps-TX Full-Duplex
- One fiber WDM: SFC200-SCSW
- Extended fiber optic distance up 100km(SFC200-SCSW:80km)
- Option: Internal power Type, Rack-mount kit
- Supports auto MDI/MDI-X function on RJ-45 Port
| Technology | - standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX |
| Interface | - RJ45 Ports | 1-Port 10/100Base-T(X), Auto-negotiation, Auto MDI/MDI-X UTP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm(100m) |
| - Fiber Ports | 1-Port 100Base-FX (SC/ST connector) Multi mode: 62.5/125㎛(2km), Single mode: 9/125㎛(~120km) | |
| - LED Indicators | Per unit: Power Per Port(TX): Link, Activity, FDX/HDX, Speed Per Port(FX): Link, Activity | |
| - Dip Switch | Internal, Auto-Negotiation, 10/100Mbps, Full/Half Duplex, LLCF on/off | |
| Performance | - Data Transfer | 100Mbps |
| Environmental | - Temperature | Operation: 0°C ~60°C, Store: -20°C ~ 80°C |
| - Humidity | 5% ~ 95% (Non-condensing) | |
| Power Supply | - Input Voltage | DC 5V 2A SMPS Adapter |
| Mechanical | - Dimensions | 71mm(W) x 94mm(D) x 26mm(H), 378g (Full-Package) |
Model Name | Description |
| SFC200-STM | 1-Fiber Port + 1-TP Port, Multi-mode, 2km, 1310nm, ST Type |
| SFC200-SCM | 1-Fiber Port + 1-TP Port, Multi-mode, 2km, 1310nm, SC Type |
| SFC200-SCS | 1-Fiber Port + 1-TP Port, Single-mode, 20km, 1310nm, SC Type |
| SFC200-SCSW/A | 1-Fiber Port + 1-TP Port, Single-mode(WDM), 20km, 1550/1310nm, SC Type |
| SFC200-SCSW/B | 1-Fiber Port + 1-TP Port, Single-mode(WDM), 20km, 1310/1550nm, SC Type |
