지금 보고 계신 제품의 제조사에요
(주)솔텍

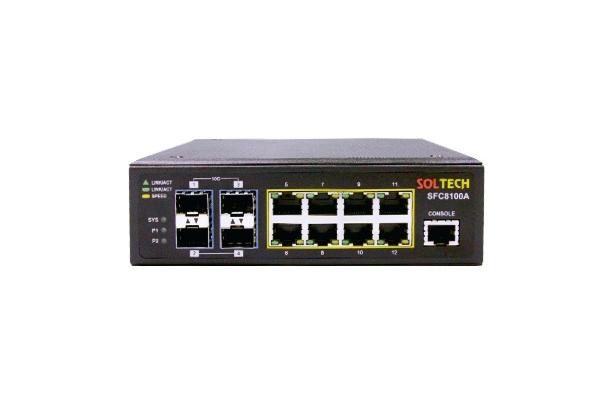

1Gbps/10Gbps 관리형 산업용 이더넷 스위치
모델명
SFC8100A
제품 상세 정보
10/100/1000Mbps TP 8포트(POE 802.3at POE) + 100/1000/2.5Gbps SFP 4슬롯
SFC81000A는 10G 지원 산업용 스위치로 Carrier Ethernet (G.8032 ERPS) Major & Sub-Ring 을 지원하여 복구타임를 보장합니다.
- 10/100/1000Mbps TP 8포트 + 1G/2.5G/10Gbps SFP 4슬롯
- 웹 기반 매니지먼트, Telnet, SSH, SNMP, RMON, Syslog
- ARP Inspection, DHCP Snooping, IP Source Guard
- STP(IEEE 802.1D) / RSTP(IEEE 802.1w) / MSTP(IEEE 802.1Q)
- Carrier Ethernet (G.8032 ERPS) Major & Sub-Ring
- 복구타임 < 50ms (TBD, future)
- IPMC support(IGMP/MLD)
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T / 100Base-TX and 100Base-FX / 1000Base-T / Gigabit Fiber IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP |
| RJ45 포트 | 10/100/1000Mbps TP 8포트 Auto MDI/MDI-X, TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm(100m) |
| 광포트 | 100/1000/2.5G/10Gbps SFP Slot Multi mode: 50/125㎛, 62.5/125㎛ Single mode: 9/125㎛ |
| LED | Per unit: Power, Power Input 1, Power Input2 System 1000Mbps TP Port: Speed(1000Mbps Yellow) Link/Activity (Green) Mini-GBIC: Link/Activity (Green) |
| Back Plane | Switching Fabric 96Gbps |
| MAC Address | 16K MAC Address table |
| 동작환경 | 동작온도: -40°C ~ 80°C 보관온도: -40℃ ~ 85℃ 습도 : 5% ~ 95%(이슬이 맺히지 않을것) |
| 입력전원 | DC 24V~48V, 전원이중화, 극성보호회로 |
| 크기 | 160mm (W) x 140mm (D) x 51mm (H) |
