CHARACTERISTICS

• Continuous duty S1.

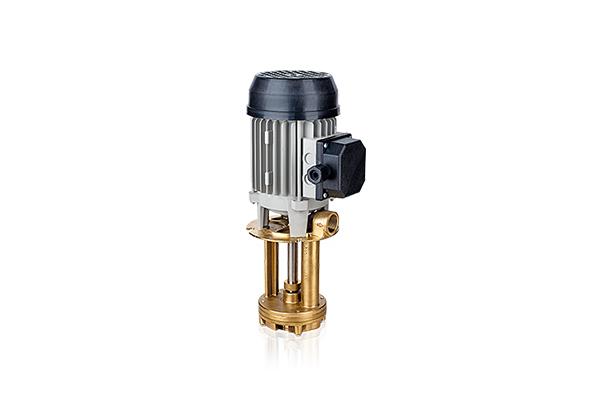

• 2 pole motor in this vertical pump.
• Insulation of the electric pump class F.
• Protection IP42 (IP 54 on demand).
• IE3 efficiency class for 3-phase motors >0,75 kW.
• Working tolerance: +/- 10%.
• Liquid temperature (with anti-freeze additive): -20 °C / +150 °C.
• Limit ambient temperature : -10 °C/+40 °C.
• For clear waters/oils and non-aggressive dilutions, without abrasive substances.

ON REQUEST

• Special voltages.
• 60Hz version.
• Dual-frequency.
• Version for oil 200°C.
• Metal fan-cover.
• UL/CSA.

MATERIALS

• Casing dezincification-resistant CuZn
• Impeller dezincification-resistant CuZn
• Shaft ASIS304, IP55

WEIGHT

8.45÷8.95 Kg

IN ACCORDANCE WITH

• EN 60034-1
• EN 60034-30
• EN 60335-1
• EN 60335-2-41

DIMENSIONS

HYDRAULIC PERFORMANCE
