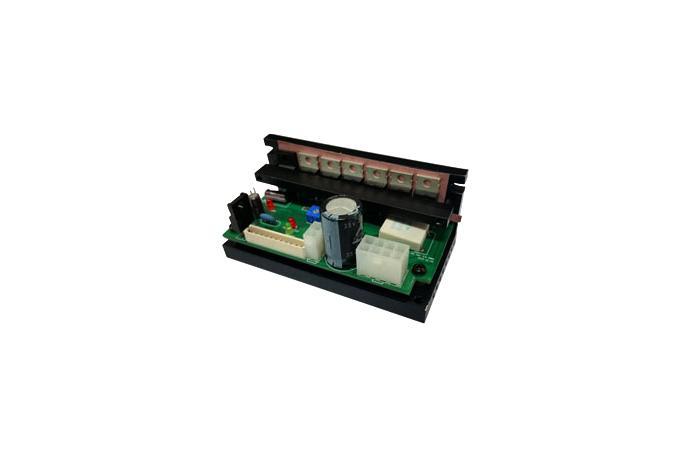

| MODEL | SBDM-05A |
| Input voltage | DC12~24V±10%(*DC36~48V) |
| Maximum Allowable Current | 5A |
| Speed Control Range | 300~3000 RPM |
| Environment | Ambient temperature 0℃ ~ 50℃(Is not freezing) |
| Output Signal | High : 5V, Low : GND |
| Protection | - Shut down at over current - Abnomal signal check between motor and driver |
| Functions | - Speed adjustable - Rotation direction changeable - Run & Stop selection - Detect speed signal |
