지금 보고 계신 제품의 제조사에요
삼부산업(주)
제품 상세 정보

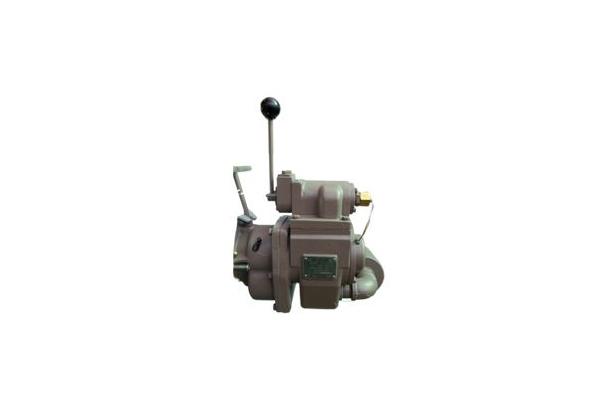

■ Standard vane type air motor, and control valve
■ Easy speed control
■ Compact and light-weight
■ Great for use in explosion area, inflammable gas area, high temperature and high humidity area.
Specification
SAM-4.5VP | HORSE POWER (MAX) | MAX HORSE | TORQUE | GEAR RATIO | WEIGHT | AIR CONSUMPTION | HOSE DIA. | AIR PRESS | ||||||
TORQUE | SPEED | MAX | STARTING | |||||||||||
PS | kg-m | R.P.M | kg-m | kg | lbs | m³/min | Ft³/min | mm | inch | kg/m² | lbs/inch² | |||
4.5VP/20 | 4.5 | 17 | 200 | 34 | 27.2 | 1/19.5 | 40 | 4.1 | 3/4 | 6 | ||||
4.5VP/30 | 10.7 | 300 | 21.4 | 17.1 | 1/12.4 | 40 | ||||||||
4.5VP/45 | 7.2 | 450 | 14.4 | 11.5 | 1/8.7 | 40 | ||||||||
4.5VP/60 | 5.5 | 600 | 11 | 8.8 | 1/6.4 | 40 | ||||||||
4.5VP/85 | 3.8 | 850 | 7.6 | 6.1 | 1/4.4 | 36 | ||||||||
4.5VP/100 | 3.4 | 950 | 6.8 | 5.4 | 1/4 | 36 | ||||||||
4.5VP/120 | 2.7 | 1200 | 5.37 | 4.3 | 1/3.4 | 36 | ||||||||
< 200 RPM ~ 600 RPM >
< 850 RPM ~ 1200 RPM >
