제품 상세 정보

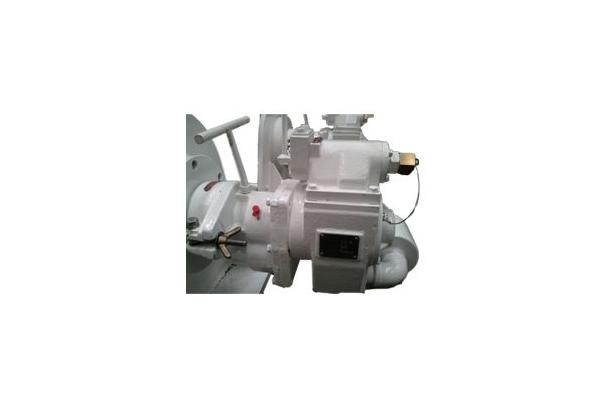

■ Standard vane type air motor, and control valve
■ Easy speed control
■ Compact and light-weight
■ Great for use in explosion area, inflammable gas area, high temperature and high humidity area.
제품 상세정보
SAM-5.5VP | HORSE POWER (MAX) | MAX HORSE | TORQUE | GEAR RATIO | WEIGHT | AIR CONSUMPTION | HOSE DIA. | AIR PRESS | ||||||
TORQUE | SPEED | MAX | STARTING | |||||||||||
PS | kg-m | R.P.M | kg-m | kg | lbs | m³/min | Ft³/min | mm | inch | kg/m² | lbs/inch² | |||
5.5VP/20 | 5.5 | 19.7 | 200 | 39.4 | 31.5 | 1/19.5 | 44 | 5.5 | 1 | 6 | ||||
5.5VP/30 | 13.1 | 300 | 26.2 | 21 | 1/12.4 | 44 | ||||||||
5.5VP/45 | 8.8 | 450 | 17.5 | 14 | 1/8.7 | 44 | ||||||||
5.5VP/60 | 6.5 | 600 | 13 | 10.5 | 1/6.4 | 44 | ||||||||
5.5VP/85 | 4.7 | 850 | 9.3 | 7.4 | 1/4.5 | 40 | ||||||||
5.5VP/120 | 3.3 | 1200 | 6.6 | 5.2 | 1/3.2 | 40 | ||||||||
5.5VP/150 | 2.6 | 1500 | 5.3 | 4.2 | 1/2.5 | 40 | ||||||||
5.5VP/180 | 2.2 | 1800 | 4.3 | 3.5 | 1/2.1 | 40 | ||||||||
< 200 RPM ~ 600 RPM >
< 850 RPM ~ 1800 RPM >
